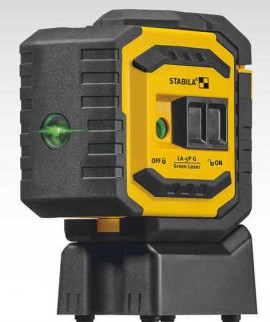

Stabila LA-5P G Dot GreenBeam Laser, 5 point

Model: LA-5P G | Order No: 03165 | UPC: 089634031659

Downloads: manual

Stabila LA-5P G Dot GreenBeam Laser, 5 point

Model: LA-5P G | Order No: 03165 | UPC: 089634031659

The dot GreenBeam laser is self-leveling and provides the fastest, most reliable way to plumb and square greater than 12’ up to 60’ and has layout points that can be transferred and right angles can be set in an instant.

Your Price	$375.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Stabila LA-5P G Offers

The dot GreenBeam laser quickly transfers layout points and set right angles, even in brightly lit conditions.

Features

The LA-5P G comes with a v-groove rare earth magnet built into the housing for secure attachment to metal
5 green bright and tight dots are visible up to 60'
Mechanical off/on switch with pendulum lock
Up to 15 hours of constant run time on 3-AA batteries
Warranty: Up to 2 years from the date of purchase

Applications

Positioning/setting interior and exterior walls
Transferring layout points from floor to ceiling
Laying out square within 60'

Stabila LA-5P G Specifications

Laser Class	2
Output	< 1 mW
Laser Wavelength	510 - 530 nm
Self-Levelling Range +/-	4.50°
Levelling Accuracy +/-	0.1875" @ 30'
Laser beam accuracy (up) +/-	0.1875" @ 30'
Laser beam accuracy (down) +/-	0.125" @ 30'
Measuring range of visible point	60'
Operating Life	20 h
Protection Class	IP 54
Tripod Connection	0.25"-20

What's included with the Stabila LA-5P G

Stabila LA-5P G Dot GreenBeam Laser, 5 point

manual for the Stabila LA-5P G Dot GreenBeam Laser, 5 point
