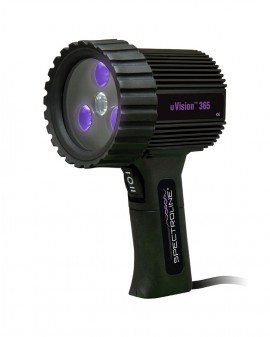

This kit is fully compliant to ASTM E3022-18 and Rolls-Royce 90061 and features a fanless design to maintain optimum lamp temperature using state-of-the-art heat sinks. It has thermal cut-off circuitry to prevent the lamp from going out of compliance when internal temperature exceeds specifications. It comes with a 20' cable.
This kit is fully compliant to ASTM E3022-18 and Rolls-Royce 90061 and features a fanless design to maintain optimum lamp temperature using state-of-the-art heat sinks. It has thermal cut-off circuitry to prevent the lamp from going out of compliance when internal temperature exceeds specifications. It comes with a 20' cable.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
Applications
For use in NDT applications including aerospace.
| Nominal Steady-State UV-A (365 nm) Intensity at 15" (38 cm) |
<5000 μW/cm2 |
| Visible Light Measurement | <1 foot-candle (11 lux) |
| UV-A Coverage Area at 15" (38 cm) at minimum 1200 μW/cm2 |
6" (15 cm) diameter |
| Light Source | 3 x UV-A LEDs, 1 x white light LED |
| White Light LED Intensity | 400 foot-candles (4,306 lux) |
| Power Requirements | 100 to 120 VAC/12 VDC |
| Battery Pack | Type: 12 V, NiMH (rechargeable) Run time: 3.5 hours continuous Charge time: 2 hours |
| Lamp Style | Pistol grip |
| Lamp Head Diameter | 3.5" (9 cm) |
| Height | 7.5" (19 cm) |
| Width | 3.5" (8.9 cm) |
| Weight | 1.9 lbs (0.90 kg) |
| Nominal Steady-State UV-A (365 nm) Intensity at 15" (38 cm) |
<5000 μW/cm2 |
| Visible Light Measurement | <1 foot-candle (11 lux) |
| UV-A Coverage Area at 15" (38 cm) at minimum 1200 μW/cm2 |
6" (15 cm) diameter |
| Light Source | 3 x UV-A LEDs, 1 x white light LED |
| White Light LED Intensity | 400 foot-candles (4,306 lux) |
| Power Requirements | 100 to 120 VAC/12 VDC |
| Battery Pack | Type: 12 V, NiMH (rechargeable) Run time: 3.5 hours continuous Charge time: 2 hours |
| Lamp Style | Pistol grip |
| Lamp Head Diameter | 3.5" (9 cm) |
| Height | 7.5" (19 cm) |
| Width | 3.5" (8.9 cm) |
| Weight | 1.9 lbs (0.90 kg) |
