Socomec Diris A40 Power Meter with 24V/48V DC Power Supply

Model: 48251U01

Socomec Diris A40 Power Meter with 24V/48V DC Power Supply-

More Socomec Products

Ask an Expert

Socomec Diris A40 Power Meter with 24V/48V DC Power Supply

Model: 48251U01

Diris A40 multifunctional revenue grade class 0.5 power supply with 24-48V DC power supply.

Diris A40 multifunctional revenue grade class 0.5 power supply with 24-48V DC power supply.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Accuenergy Acuvim IIR-D-5A-P2V3 Revenue Grade Power/Energy Meter, LCD, 5 A/1 A input, 60 Vdc-

Accuenergy Acuvim IIR-D-5A-P2V3 Revenue Grade Power/Energy Meter, LCD, 5 A/1 A input, 60 Vdc

Model: Acuvim IIR-D-5A-P2V3 | Order No: ACUVIM-IIR-D-5A-P2V3

Revenue grade power meter with data logging capabilites for single and three phase circuits features integrated on-board LCD display, field selectable 5 A or 1 A input for current transformers and low voltage DC power supply input.

Learn More

Accuenergy Acuvim IIR-D-5A-P2V3 Revenue Grade Power/Energy Meter, LCD, 5 A/1 A input, 60 Vdc-

Accuenergy Acuvim IIR-D-5A-P2V3 Revenue Grade Power/Energy Meter, LCD, 5 A/1 A input, 60 Vdc

Model: Acuvim IIR-D-5A-P2V3 | Order No: ACUVIM-IIR-D-5A-P2V3

Revenue grade power meter with data logging capabilites for single and three phase circuits features integrated on-board LCD display, field selectable 5 A or 1 A input for current transformers and low voltage DC power supply input.

Learn More

Accuenergy Acuvim IIR-D-MV-P2V3 Revenue Grade Power/Energy Meter, LCD, 333 mV input, 60 Vdc-

Accuenergy Acuvim IIR-D-MV-P2V3 Revenue Grade Power/Energy Meter, LCD, 333 mV input, 60 Vdc

Model: Acuvim IIR-D-MV-P2V3 | Order No: Acuvim-IIR-D-MV-P2V3

Revenue grade power meter with data logging capabilites for single and three phase circuits features integrated on-board LCD display, 333 mV input for current transformers and low voltage DC power supply input.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Flex-Core 1706SC Shorting Block-

Flex-Core 1706SC Shorting Block

1706SC

Flex-Core 3VTL-460-120 Potential Transformer-

Flex-Core 3VTL-460-120 Potential Transformer

3VTL-460-120

Flex-Core 3VTN-460-277-FF Potential Transformer-

Flex-Core 3VTN-460-277-FF Potential Transformer

3VTN-460-277-FF

Monitoring and managing energy for high/low voltage electrical installations

The DIRIS A40 is a revenue grade class 0.5 power meter for measuring the extent of electrical values for all LV/HV networks.

They allow starting from the front panel to configure and display all the electric parameters and to exploit the functions of measurement, metering and energies management, harmonics analysis, remote control and control state of control devices, communication and detection of high voltages, peaks and voltage disconnections.

In addition, DIRIS A40 has a function for correcting connection errors.

Key Features

  • Revenue grade accuracy.
  • Advanced metering and multi-measurement
  • Individual harmonics up to level 63
  • RS485 (Jbus/Modbus and Profibus-DP) and Ethernet communication (Modbus TCP and Jbus/Modbus over TCP)
  • Optional additional modules
  • Alarm management
  • Predictive power indicator
  • 96 x 96 mm panel mount

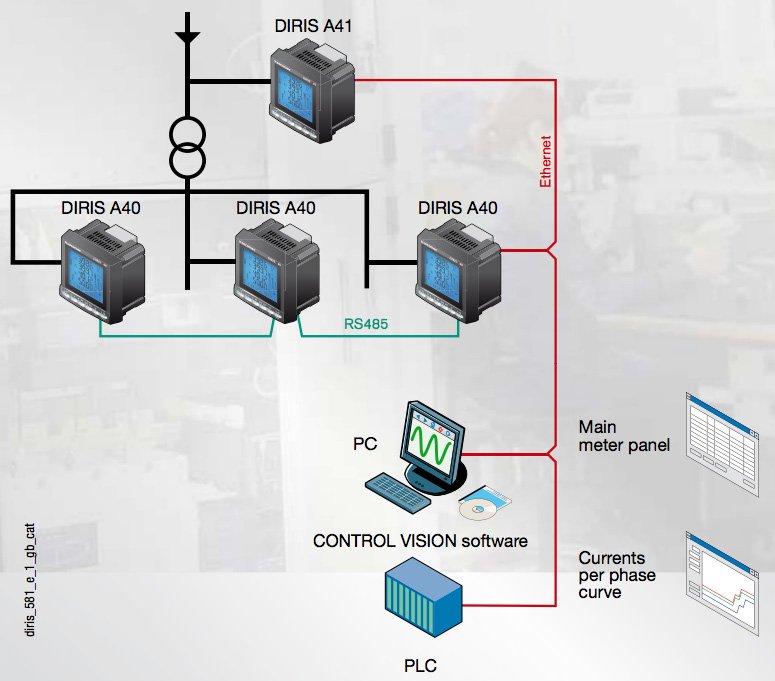

The Socomec Diris A40 Setup

Specifications

Multi measurement

Current

  • instantaneous: I1, I2, I3, In, Isystem
  • average/maximum average: I1, I2, I3, In

Voltages & frequency

  • instantaneous: U1, U2, U3, U12, U23, U31, F, Vsystem, Usystem
  • average/maximum average: U1, U2, U3, U12, U23, U31, F

Power

  • instantaneous: 3P, ΣP, 3Q, ΣQ, 3S, ΣS
  • average/maximum average: ΣP, ΣQ, ΣS
  • predictive: (ΣP), (ΣQ), (ΣS)

Power factor

  • instantaneous: 3PF, ΣPF
  • average/maximum average: ΣPF
Metering
  • Active energy:+/- kWh
  • Reactive energy:+/- kvarh
  • Apparent energy:kVAh
Harmonic analysis

Harmonic distortion rate

  • Currents: thd I1, thd I2, thd I3, thd In
  • Phase-to-neutral voltage: thd U1, thd U2, thd U3
  • Phase to phase voltage: thd U12, thd U23, thd U31

Individual up to level 63

  • Currents: HI1, HI2, HI3, HIn
  • Phase-to-neutral voltage: HU1, HU2, HU3
  • Phase to phase voltage: HU12, HU23, HU31

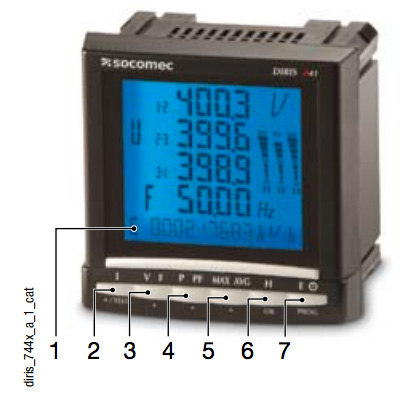

The Socomec Diris A40 Unit Overview

  1. Backlit LCD screen.
  2. Pushbutton for currents and setup wiring correction
  3. Pushbutton for voltages and frequency
  4. Pushbutton for active, reactive, and apparent power and power factor
  5. Pushbutton for maximum and average current and power values
  6. Pushbutton for harmonics values
  7. Pushbutton for pulse, hours and electrical energy meters

What's included with the Socomec 48251U01

  • Socomec Diris A40 Power Meter with 24V/48V DC Power Supply
