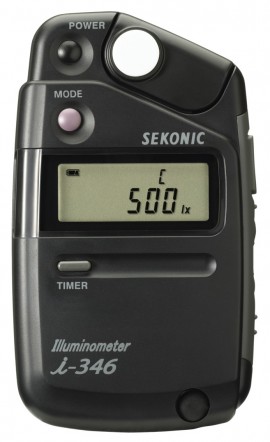

Ideal for monitoring light levels in the workplace and other environments, this illuminance meter is a compact, lightweight, and easy-to-use digital meter for measuring light in lux or footcandles. In addition, this meter is perfect for when brightness and consistent illumination are critical and offers three reading modes.
Ideal for monitoring light levels in the workplace and other environments, this illuminance meter is a compact, lightweight, and easy-to-use digital meter for measuring light in lux or footcandles. In addition, this meter is perfect for when brightness and consistent illumination are critical and offers three reading modes.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Compact, lightweight, and intuitive, this illuminance meter offers a convenient solution for quick, easy, portable, and reliable illuminance readings. In addition, this meter has three reading modes: single, continuous, or delayed up to 60 seconds.
Features
Applications
| Measuring Range | 2.5 to 200,000 lx 0.23 to 18,600 fc |
| Measuring Method | Incident light only (fixed lumidisc) |
| Measuring Cycle | 0.5 seconds |
| Light Receptor Element | Silicon photo diode |
| Light Source Measured | Ambient light |
| Linearity | ±5% (23 ±2°C) |
| Display | Unit: Lux (lx), foot-candle (fc) Significant digits: Three digits |
| Other Functions | Out of measurement range: UNDER or OVER warning display Battery power indicator display Automatic power off function (about 4 minutes after last operation) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Battery Use | AA battery 1.5 V x 1 (alkaline, manganese, lithium, NiMH) |
| Dimensions | Approximately 2.3 x 4.3 x 0.9" (63 x 110 x 22 mm) |
| Weight | Approximately 0.2 lbs (75 g) without battery |
| Measuring Range | 2.5 to 200,000 lx 0.23 to 18,600 fc |
| Measuring Method | Incident light only (fixed lumidisc) |
| Measuring Cycle | 0.5 seconds |
| Light Receptor Element | Silicon photo diode |
| Light Source Measured | Ambient light |
| Linearity | ±5% (23 ±2°C) |
| Display | Unit: Lux (lx), foot-candle (fc) Significant digits: Three digits |
| Other Functions | Out of measurement range: UNDER or OVER warning display Battery power indicator display Automatic power off function (about 4 minutes after last operation) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Battery Use | AA battery 1.5 V x 1 (alkaline, manganese, lithium, NiMH) |
| Dimensions | Approximately 2.3 x 4.3 x 0.9" (63 x 110 x 22 mm) |
| Weight | Approximately 0.2 lbs (75 g) without battery |
