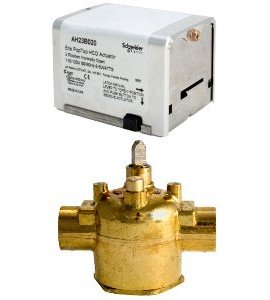

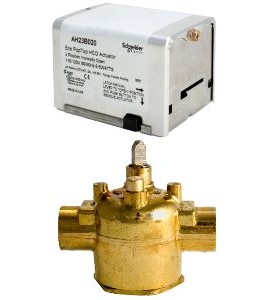

Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve’s actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler. VS Series valves are available for low pressure steam applications.
Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve’s actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler. VS Series valves are available for low pressure steam applications.
PopTop Series are two position spring return valves. When powered, the actuator moves to the desired position, tensing the spring return system. When power is removed the actuator returns to the normal position
PopTop Series two position spring return valves can be purchased with an optional built-in auxiliary SPDT end switch for interfacing or signaling; for example, zone pump burner control. Actuators are designed fror cycling applications (not constantly powered).
Features
| Valve Assembly | |
| Body Size | 1 in |
| Configuration | 2-Way |
| Type | Zone |
| Connection | NPT |
| Material Trim | Brass |
| Flow Coefficient | 8 cv |
| Control Media | Glycol 25 to 50%, Steam and Water |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | VS2 |
| Actuator | |
| Close-Off Pressure | 20 PSI |
| Assembly Components | |
| Valve Body | VS2427 |
| Actuator | |
| Actuator Type | Electric |
| Control Signal | 2-Position (On/Off) |
| Loss of Power Type | Spring Return |
| Loss of Power Position | Normally open |
| Power Input Voltage | 24 VAC |
| Leads and Connections | 18 in Appliance |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Assembly Components | |
| Valve Linkage | None, tool-less connection |
| Actuator | AH24A020 |
| Actuator Range | Erie PopTop |
| Valve Assembly | |
| Body Size | 1 in |
| Configuration | 2-Way |
| Type | Zone |
| Connection | NPT |
| Material Trim | Brass |
| Flow Coefficient | 8 cv |
| Control Media | Glycol 25 to 50%, Steam and Water |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | VS2 |
| Actuator | |
| Close-Off Pressure | 20 PSI |
| Assembly Components | |
| Valve Body | VS2427 |
| Actuator | |
| Actuator Type | Electric |
| Control Signal | 2-Position (On/Off) |
| Loss of Power Type | Spring Return |
| Loss of Power Position | Normally open |
| Power Input Voltage | 24 VAC |
| Leads and Connections | 18 in Appliance |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Assembly Components | |
| Valve Linkage | None, tool-less connection |
| Actuator | AH24A020 |
| Actuator Range | Erie PopTop |
