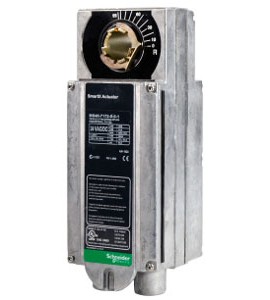

A SmartX direct-coupled damper actuator delivering 150 lb-in (17 N-m) of torque at 120 VAC. It’s designed for controlling air dampers in building systems requiring supporting two-position control.
A SmartX direct-coupled damper actuator delivering 150 lb-in (17 N-m) of torque at 120 VAC. It’s designed for controlling air dampers in building systems requiring supporting two-position control.
Features
| Control signal | Two wire, SPST or Triacs (500 mA rated) |
| Power inputs | Control: 2-position Voltage: 120 VAC VA at 60 Hz: 8.4 |
| Connections | Class 1: 24"(61 cm) long appliance cables, 18 AWG color coded leads, 1/2" (1.27 cm) conduit connector Class 2: Power and control: 36" (91 cm) long, 22 AWG color coded appliance cable pigtail leads, 1/2" (1.27 cm) conduit connector. |
| Electrical outputs | Travel: Electronically limited to 92° ±1° (MS) MF–MA mechanically limited to 101° ±1°. |
| Mechanical outputs | Position indicator: pointer and scale are provided |
| Ambient temperature limits | Shipping and storage: -40 to 160°F (-40 to 71°C) Operating: -22 to 140°F (-30 to 60°C) Humidity: 5 to 95% RH, non-condensing |
| Location | NEMA 1, NEMA 2 (IEC IP54) with customer supplied water tight conduit connectors |
| Agency listings | UL 873: Underwriters Laboratories (File #E9429 Category Temperature-indicating and Regulating Equipment) Cul: UL LISTED for use in Canada by Underwriters Laboratories. Canadian standards C22.2 No. 24–93 |
