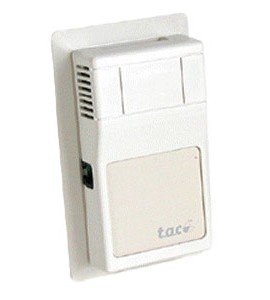

A 10 kΩ room temperature sensor with an 11 kΩ shunt for I/A compatibility, housed in an ABS plastic enclosure.This has a temperature range of -40 to 302°F (-40 to 150°C).
A 10 kΩ room temperature sensor with an 11 kΩ shunt for I/A compatibility, housed in an ABS plastic enclosure.This has a temperature range of -40 to 302°F (-40 to 150°C).
Features
Applications
| Output | 10K Ω at 77°F (25°C) with 11 K |
| Temperature Range | -40 to 302°F (-40 to 150°C) |
| Interchageability | ± 0.2°C (0 to 70°C) |
| Dissipation Constant Stability | 3 mW/C |
| Accuracy | ± 0.2°C (0 to 70°C) ± 0.4°F (32 to 158°C) |
| Operating Humidity | 0 to 90% RH non-condensing |
| Output | 10K Ω at 77°F (25°C) with 11 K |
| Temperature Range | -40 to 302°F (-40 to 150°C) |
| Interchageability | ± 0.2°C (0 to 70°C) |
| Dissipation Constant Stability | 3 mW/C |
| Accuracy | ± 0.2°C (0 to 70°C) ± 0.4°F (32 to 158°C) |
| Operating Humidity | 0 to 90% RH non-condensing |
