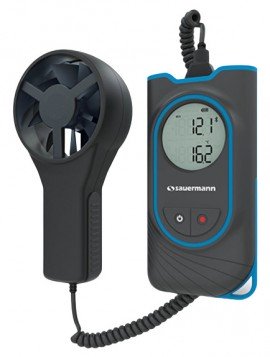

Easily measure airflow, air velocity, and temperature with this vane thermo-anemometer, which measures from 14 to 140°F (-200 to 1300°C). In addition, this thermo-anemometer features a large vane probe with a 78.74" (2 m) cable, a backlit LCD screen, and magnetic backing for ease of use.
Easily measure airflow, air velocity, and temperature with this vane thermo-anemometer, which measures from 14 to 140°F (-200 to 1300°C). In addition, this thermo-anemometer features a large vane probe with a 78.74" (2 m) cable, a backlit LCD screen, and magnetic backing for ease of use.
Features
Applications
| Air Velocity | Measuring units: m/s, km/h, fpm, mph Accuracy: ±(3% of value 0.1 m/s) from 0.4 to 3 m/s ±(1% of value 0.3 m/s) from 3 to 30 m/s ±(3% value 19.7 fpm) from 78.8 to 590.6 fpm ±(1% value 59.1 fpm) from 590.6 to 5905.5 fpm Measuring range: from 0.4 to 30 m/s from 78.7 to 5905 fpm Resolution: 0.01 m/s from 0.4 to 5 m/s 0.1 m/s from 5 to 30 m/s 0.1 fpm from 0 to 984.2 fpm 1 fpm from 984.2 to 5905 fpm |
| Airflow | Measuring units: m3/hour, m3/minute, m3/second, cfm Measuring range: From 0 to 9999 m3/hour From 0 to 9999 m3/minute From 0 to 9999 m3/second From 0 to 9999 cfm Resolution: 1 m3/hour 0.01 m3/minute 0.001 m3/second 0.1 cfm |
| Ambiance | Air and neutral gas |
| Auto Shut-Off | 10 minutes (can be deactivated) |
| Dimensions | Thermo-anemometer: 5.95 x 2.76 x 1.3" (151 x 70 x 33 mm) Probe: 6.3 x 3.19 x 1.5" (160.17 x 81 x 38 mm) |
| Display | Integrated 2-line LCD 7 segment monochrome display with backlight |
| Housing | ABS-PC and TPE, IP54 |
| Keypad | 1 ON/OFF and backlight button 1 hold/minimum/maximum/live and unit button |
| Measuring Element | Air velocity: Optical detection Temperature: NTC |
| Operating Conditions | From 32 to 104°F (0 to 40°C) in non condensing conditions Altitude: from 0 to 6561' (2000 m) |
| Power | Supply: 3 alkaline batteries LR03 AAA 1.5 V Life: 120 hours (Without backlight and without wireless communication) |
| Standards and Directives | 2011/65/EU RoHS II (EU)2015/863; 2012/19/EU WEEE; 2014/53/EU RED |
| Temperature | Measuring units: °F, °C Accuracy: ±0.5°F (±0.9°C) Measuring range: 14 to 140°F (-10 to 60°C) Resolution: 0.1°F (0.1°C) Storage: From -4 to 140°F (-20 to 60°C) |
| Weight | 11.2 oz (318 g) with probe and batteries |
| Wireless Communication | Range frequency from 2402 to 2480 MHz with a transmit power of 0 dBm Range up to 98' (15 m), depending on smartphone radio strength Minimum required versions: Android 5.0, iOS 12.4, BLE 4.0 |
