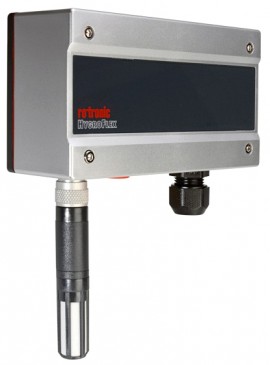

Rotronic HF53W-X1.1.01 Temperature/Humidity Transmitter, 3-wire, Wall mount no LCD

Model: HF53W-X1.1.01

Downloads: datasheet manual

Rotronic HF53W-X1.1.01 Temperature/Humidity Transmitter, 3-wire, Wall mount no LCD

Model: HF53W-X1.1.01

The latest development in two-channel transmitters for the exact measurement of humidity and temperature that also features the possibility to output any psychrometric calculation as an analogue signal.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Rotronic HF532-WB6XX1XX HVAC/R Transmitter, 3-Wire

Model: HF532-WB6XX1XX

HygroFlex5 3-wire transmitter measures RH, temperature and dew point. This transmitter with wall mount is compatible with HygroClip2 probes integrated with AirChip3000 technology.

Learn More

Rotronic HF532-WB6XD1XX HVAC/R Transmitter with display, 3-Wire

Model: HF532-WB6XD1XX

HygroFlex5 3-wire transmitter with display measures RH, temperature and dew point. This transmitter with wall mount is compatible with HygroClip2 probes integrated with AirChip3000 technology.

Learn More

Rotronic HF5A Humidity and Temperature Transmitter

Model: HF5A-32X0020200200

The HF5A-series is our latest advanced transmitter, compatible with HC2, HC2A, and RMS probes for humidity, temperature, and differential pressure.

Learn More

Rotronic HF532-DB6XD1XX HVAC/R Transmitter with Display, 3-Wire, Duct

Model: HF532-DB6XD1XX

HygroFlex5 3-wire transmitter with display measures RH, temperature and dew point. This transmitter with duct mount is compatible with HygroClip2 probes integrated with AirChip3000 technology.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Rotronic HF53W-X1.1.01 Offers

Features

Designed for fixed installation in HVAC/R and industrial applications
Relative humidity and temperature measurement with an accuracy of <0.8% R.H. and <0.1 K at 23 °C
Dew Point and other psychrometric calculations
Compatible with HygroClip2 plug-in probes with integrated AirChip3000 technology
Compensates humidity and temperature over 30,000 reference points
Dew/frost point calculation
Active alarming and information
ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip
Wide choice of interchangeable probes to satisfy every application and to facilitate routine calibrations
Configuration by keypad possible
Two freely selectable and scalable analogue outputs
Various digital outputs available
External data logging function with 2000 data point memory
Robust industrial housing with IP65 protection rating
Wall mount version

Rotronic HF53W-X1.1.01 Specifications

Temperature Output Range	-100 to 200°C (-148 to 392°F), probe dependent
Humidity Output Range	0 to 100% RH
Output Signals (analogue)	Scalable by user 0-1V, 0-5V, 0-10V, 0(4)-20mA
Digital Outputs (optional)	Ethernet (LAN, WLAN), USB, RS-485
Power Supply	15-40VDC
Circuit Type	3/4 wires
Min/Max Load	V-signal: ≥1k/V / mA-signal: ≤500
Data Logging	External, 2000 data point memory
Psychrometric Calculations	All selectable

Click here for complete specifications on the Rotronic HF53W-X1.1.01

What's included with the Rotronic HF53W-X1.1.01

Transmitter with HC2-S probe

datasheet for the Rotronic HF53W-X1.1.01 Temperature/Humidity Transmitter, 3-wire, Wall mount no LCD manual for the Rotronic HF53W-X1.1.01 Temperature/Humidity Transmitter, 3-wire, Wall mount no LCD

Description ➕➖

Rotronic HF53W-X1.1.01 Offers

Features

Designed for fixed installation in HVAC/R and industrial applications
Relative humidity and temperature measurement with an accuracy of <0.8% R.H. and <0.1 K at 23 °C
Dew Point and other psychrometric calculations
Compatible with HygroClip2 plug-in probes with integrated AirChip3000 technology
Compensates humidity and temperature over 30,000 reference points
Dew/frost point calculation
Active alarming and information
ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip
Wide choice of interchangeable probes to satisfy every application and to facilitate routine calibrations
Configuration by keypad possible
Two freely selectable and scalable analogue outputs
Various digital outputs available
External data logging function with 2000 data point memory
Robust industrial housing with IP65 protection rating
Wall mount version

Specifications ➕➖

Rotronic HF53W-X1.1.01 Specifications

Temperature Output Range	-100 to 200°C (-148 to 392°F), probe dependent
Humidity Output Range	0 to 100% RH
Output Signals (analogue)	Scalable by user 0-1V, 0-5V, 0-10V, 0(4)-20mA
Digital Outputs (optional)	Ethernet (LAN, WLAN), USB, RS-485
Power Supply	15-40VDC
Circuit Type	3/4 wires
Min/Max Load	V-signal: ≥1k/V / mA-signal: ≤500
Data Logging	External, 2000 data point memory
Psychrometric Calculations	All selectable

Click here for complete specifications on the Rotronic HF53W-X1.1.01

Included ➕➖

What's included with the Rotronic HF53W-X1.1.01

Transmitter with HC2-S probe
