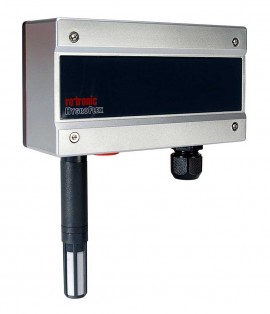

HygroFlex4 2-wire transmitter measures RH and temperature and calculates dew/frost point. This transmitter with wall mount is ideal for use in HVAC/R industry.
HygroFlex4 2-wire transmitter measures RH and temperature and calculates dew/frost point. This transmitter with wall mount is ideal for use in HVAC/R industry.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Temperature Data Loggers category for similar products.
Or let's do a search and help you find what you need:
The HygroFlex4-series is the latest development in HVAC/R transmitters for relative humidity, temperature and dew point. Based on AirChip3000 technology, the instruments achieve a degree of accuracy not seen before.
In combination with advances in sensor technology and integration, the HygroFlex HF4 transmitters provide superb precision and state-of-the-art functionality, taking humidity, temperature and dew point measurement to a whole new level of performance and reliability (< 1 %rh / 0.2 K).
Features
Applications
| Accuracy @ 23 ±5°C | ±1.0 %rh / ±0.2 K |
| Probe Type | Integrated |
| Operating Range | -40 to 60°C / 0 to 100 %rh, non-condensing |
| Measuring Range With Integrated Probe | -50 to 100°C / 0 to 100 %rh |
| Power Consumption | 15 to 40 VDC / 12 to 28 VAC |
| Long-Term Stability | <1 %rh / year |
| Humidity Sensor | Hygromer IN-1 |
| Temperature Sensor | PT100 1/3 DIN Class B |
| Circuit Type | 2-wire |
| Weight | 220 g |
| Accuracy @ 23 ±5°C | ±1.0 %rh / ±0.2 K |
| Probe Type | Integrated |
| Operating Range | -40 to 60°C / 0 to 100 %rh, non-condensing |
| Measuring Range With Integrated Probe | -50 to 100°C / 0 to 100 %rh |
| Power Consumption | 15 to 40 VDC / 12 to 28 VAC |
| Long-Term Stability | <1 %rh / year |
| Humidity Sensor | Hygromer IN-1 |
| Temperature Sensor | PT100 1/3 DIN Class B |
| Circuit Type | 2-wire |
| Weight | 220 g |
