"Our job is helping you do your job"

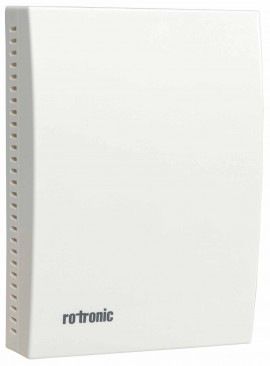

CO2 measurement transducers with integrated humidity and temperature measurement. The unit has the proven Hygromer® IN1 sensor, and an unrivalled price-performance ratio.
CO2 measurement transducers with integrated humidity and temperature measurement. The unit has the proven Hygromer® IN1 sensor, and an unrivalled price-performance ratio.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Gas Accessories category for similar products.
Or let's do a search and help you find what you need:
Features
| Dimensions | Type R: 131 x 86 x32 (H,W,D) mm Type S: 120 x 86 x 32 (H,W,D) mm Type D: 82 x 117 x 32 (H,W,P) mm |
| Weight | Type R: approx.115 g / Type S: approx.135 g / Type D: approx. 220 g |
| Range of Application | Electronics: 0 .. 50 °C Measuring range probe dependent 0 .. 100 %RH, non-condensing |
| Accuracy at 23 ±5 °C | <3 % RH (10..90 %RH) / ± 0.3, ± 1 K type S with display 0 .. 2000 ppm: ± 40 ppm ± 3 % of measured value 0 .. 5000 ppm: ± 10 % of measured value |
| Measurement Principle | Infrared (NDIR) |
| Measurement Ranges | 0..2000 ppm or 0..5000 ppm |
| Adjustment Points | 400 ppm and 35, 80 %RH |
| Pressure Dependency | +1.6 % reading per kPa |
| Current Output | 4..20 mA |
| Dimensions | Type R: 131 x 86 x32 (H,W,D) mm Type S: 120 x 86 x 32 (H,W,D) mm Type D: 82 x 117 x 32 (H,W,P) mm |
| Weight | Type R: approx.115 g / Type S: approx.135 g / Type D: approx. 220 g |
| Range of Application | Electronics: 0 .. 50 °C Measuring range probe dependent 0 .. 100 %RH, non-condensing |
| Accuracy at 23 ±5 °C | <3 % RH (10..90 %RH) / ± 0.3, ± 1 K type S with display 0 .. 2000 ppm: ± 40 ppm ± 3 % of measured value 0 .. 5000 ppm: ± 10 % of measured value |
| Measurement Principle | Infrared (NDIR) |
| Measurement Ranges | 0..2000 ppm or 0..5000 ppm |
| Adjustment Points | 400 ppm and 35, 80 %RH |
| Pressure Dependency | +1.6 % reading per kPa |
| Current Output | 4..20 mA |
