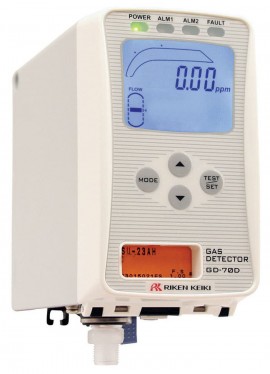

Sets the standard for performance, flexibility, and versatility, this single-gas detector monitors carbon monoxide up to 75 ppm and features plug-and-play intelligent sensors to retain calibration and sensor data. In addition, the long-life high-capacity pump and sensing elements are replaceable in seconds, with no tools required.
Sets the standard for performance, flexibility, and versatility, this single-gas detector monitors carbon monoxide up to 75 ppm and features plug-and-play intelligent sensors to retain calibration and sensor data. In addition, the long-life high-capacity pump and sensing elements are replaceable in seconds, with no tools required.
Minimizing maintenance and maximizing reliability, this gas detector is perfect as a stand-alone device, offering several communication protocols to existing PLC systems or integrated with the Beacon series controllers (sold separately).
Features
Applications
| Gas Detection Range | 0 to 75 ppm CO |
| Detection Principle | Electrochemical cell |
| Sampling Method | Sample draw (auto-adjustment of flow rate) 0.5 L/min ±10% |
| Self-Diagnostic Function | Main unit: System failure, sensor failure, flow failure, communication error NT/ET/analog Sensor: Sensor trouble, system failure |
| Data Logging | Main unit: Event history, alarm history, calibration history, alarm trend (180 seconds before/after 1st alarm) Sensor: Event history, alarm history, calibration history, alarm trend (60 seconds before/after 1st alarm) |
| Gas Alarms | Two alarm levels: 1st alarm - red 2nd alarm - red Fault alarm - yellow |
| Communication | 4 to 20 mA DC |
| External Output | 1st, 2nd, and trouble alarms: Relay contact output for each alarm |
| Display | Large LCD display (white backlight) Gas concentration Flor rate, communication status, and gas detected Error code, content of error |
| Operating Settings | All operational settings are user-adjustable through the front panel |
| Power Requirements | DC 24 V ±10%, approximately 0.5 W (maximum 4 W including sensor unit) |
| Mounting | Wall-mounting base plate with two or three screws |
| Sampling Tubing | 0.16 x 0.24" (4 x 6 mm) PTFE tubing recommended |
| Bushing | Cable type varies depending on the communication method (cable bushing optional) |
| Dimensions | 2.8 x 4.7 x 5.9" (70 x 120 x 150 mm) |
| Weight | 2 lbs (0.9 kg) |
| Gas Detection Range | 0 to 75 ppm CO |
| Detection Principle | Electrochemical cell |
| Sampling Method | Sample draw (auto-adjustment of flow rate) 0.5 L/min ±10% |
| Self-Diagnostic Function | Main unit: System failure, sensor failure, flow failure, communication error NT/ET/analog Sensor: Sensor trouble, system failure |
| Data Logging | Main unit: Event history, alarm history, calibration history, alarm trend (180 seconds before/after 1st alarm) Sensor: Event history, alarm history, calibration history, alarm trend (60 seconds before/after 1st alarm) |
| Gas Alarms | Two alarm levels: 1st alarm - red 2nd alarm - red Fault alarm - yellow |
| Communication | 4 to 20 mA DC |
| External Output | 1st, 2nd, and trouble alarms: Relay contact output for each alarm |
| Display | Large LCD display (white backlight) Gas concentration Flor rate, communication status, and gas detected Error code, content of error |
| Operating Settings | All operational settings are user-adjustable through the front panel |
| Power Requirements | DC 24 V ±10%, approximately 0.5 W (maximum 4 W including sensor unit) |
| Mounting | Wall-mounting base plate with two or three screws |
| Sampling Tubing | 0.16 x 0.24" (4 x 6 mm) PTFE tubing recommended |
| Bushing | Cable type varies depending on the communication method (cable bushing optional) |
| Dimensions | 2.8 x 4.7 x 5.9" (70 x 120 x 150 mm) |
| Weight | 2 lbs (0.9 kg) |
