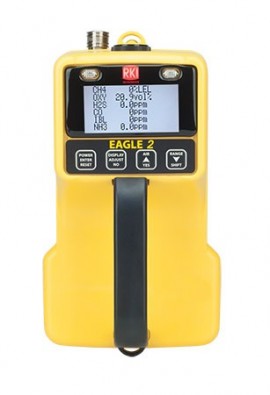

Powerful and portable, this multi-gas detector provides O2, H2S, 100% LEL/volume IR auto-ranging CH4, and 0 to 5% volume (IR) of CO2 detection at the push of a button. In addition, this ergonomic detector features data logging and a powerful internal pump with a low-flow auto shut-off and alarm.
Powerful and portable, this multi-gas detector provides O2, H2S, 100% LEL/volume IR auto-ranging CH4, and 0 to 5% volume (IR) of CO2 detection at the push of a button. In addition, this ergonomic detector features data logging and a powerful internal pump with a low-flow auto shut-off and alarm.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Portable Combustible Gas Detectors category for similar products.
Or let's do a search and help you find what you need:
With easy access to a variety of controls and two user-adjustable alarm levels, this multi-gas detector is ideal for catalyst operations at refineries.
Features
| Display | 3 display modes: display all gases, large font-autoscroll, or large font-manual scroll Polyurethane protected overlay Backlight illuminates for alarms and by demand, with adjustable time |
| Sampling Method | Powerful, long-life internal pump (over 6000 hours) can draw samples over 125' (38 m) Flow rate approximately 2.0 SCFH |
| Alarms | 2 alarms per channel plus TWA and STEL alarms for toxics The two alarms are fully adjustable for levels, latching or self reset, and silenceable |
| Alarm Method | Buzzer 95 dB at 11.8" (30 cm) Four high intensity LED’s |
| Controls | 4 external glove friendly push buttons for operation, demand zero, and auto calibration Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features |
| Enclosure | Weatherproof, chemical resistant, RFI / EMI coated high impact polycarbonate-PBT blend Can operate in 2" (5 cm) of water without leakage Ergonomically balanced with rugged top mounted handle Water and dust resistant equivalent to IP64 |
| Language | Readout can display in 5 languages (English, French, German, Italian, or Spanish) |
| Continuous Operation (At 70°F (21.11°C)) | 18 hours using alkaline batteries, or 20 hours using NiMH |
| Power Source | 4 Alkaline or NiMH, size C batteries (Charger has Alkaline recognition to prevent battery damage if charging is attempted with Alkalines) |
| Operating Conditions | Temperature: -4 to 122°F (-20 to 50°C) Humidity: 0 to 95% RH, non-condensing |
| Environmental | IP64 water resistant |
| Response Time | 30 seconds to 90% (for most gases) using standard 5' (1.5 m) hose |
| Safety Rating | Intrinsically Safe: Class I, Groups A, B, C, D Approvals: CSA and CE |
| Display | 3 display modes: display all gases, large font-autoscroll, or large font-manual scroll Polyurethane protected overlay Backlight illuminates for alarms and by demand, with adjustable time |
| Sampling Method | Powerful, long-life internal pump (over 6000 hours) can draw samples over 125' (38 m) Flow rate approximately 2.0 SCFH |
| Alarms | 2 alarms per channel plus TWA and STEL alarms for toxics The two alarms are fully adjustable for levels, latching or self reset, and silenceable |
| Alarm Method | Buzzer 95 dB at 11.8" (30 cm) Four high intensity LED’s |
| Controls | 4 external glove friendly push buttons for operation, demand zero, and auto calibration Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features |
| Enclosure | Weatherproof, chemical resistant, RFI / EMI coated high impact polycarbonate-PBT blend Can operate in 2" (5 cm) of water without leakage Ergonomically balanced with rugged top mounted handle Water and dust resistant equivalent to IP64 |
| Language | Readout can display in 5 languages (English, French, German, Italian, or Spanish) |
| Continuous Operation (At 70°F (21.11°C)) | 18 hours using alkaline batteries, or 20 hours using NiMH |
| Power Source | 4 Alkaline or NiMH, size C batteries (Charger has Alkaline recognition to prevent battery damage if charging is attempted with Alkalines) |
| Operating Conditions | Temperature: -4 to 122°F (-20 to 50°C) Humidity: 0 to 95% RH, non-condensing |
| Environmental | IP64 water resistant |
| Response Time | 30 seconds to 90% (for most gases) using standard 5' (1.5 m) hose |
| Safety Rating | Intrinsically Safe: Class I, Groups A, B, C, D Approvals: CSA and CE |
