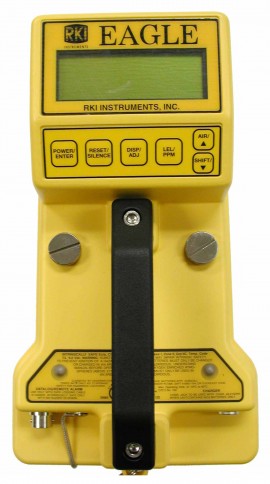

RKI EAGLE Portable Multi-Gas Detector, LEL and PPM/O2/H2S/Cl2

Model: 72-5404RK

RKI EAGLE Portable Multi-Gas Detector, LEL and PPM/O2/H2S/Cl2

Model: 72-5404RK

Powerful and versatile, this multi-gas-gas detector provides simultaneous LEL, PPM, oxygen, hydrogen sulfide, and chlorine detection at the push of a button. In addition, this ergonomic detector features a powerful internal pump with a low-flow auto shut-off and alarm, which can draw samples from up to 125' (38.1 m).

Powerful and versatile, this multi-gas-gas detector provides simultaneous LEL, PPM, oxygen, hydrogen sulfide, and chlorine detection at the push of a button. In addition, this ergonomic detector features a powerful internal pump with a low-flow auto shut-off and alarm, which can draw samples from up to 125' (38.1 m).

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Portable Multi-Gas Detectors category for similar products.

Or let's do a search and help you find what you need:


RKI 72-5404RK Offers



The RKI 72-5404RK EAGLE Gas Monitor is capable of detecting up to 6 different gases as a time, including ppm or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 and methane or hydrocarbons in LEL and % volume ranges. The EAGLE has a strong internal pump with a low flow auto shut off and alarm, allowing for quick response and recovery from distant sampling locations. With its ergonomic design and large glove friendly buttons, the EAGLE offers easy access to controls such as auto-calibration, alarm silence, demand zero and peak hold. Each channel has 2 alarm levels plus TWA and STEL alarms for toxic channels.

Features

  • Simultaneous detection of up to 6 different gases
  • Over 400 gas monitoring configurations
  • Wide range of toxic gases
  • LEL/ppm hydrocarbon detection
  • Low flow pump shut off and alarm
  • Methane elimination switch for environmental use
  • Security adjustment lockout switch
  • Up to 30 hours of continuous operation
  • Alkaline or Ni-Cad capability
  • IR sensors available for CO2, LEL CH4 or HC, Volume CH4 or HC
  • Transformer testing version available
  • Data logging option
  • Auto calibration/single gas calibration
  • Dual hydrophobic filters
  • Ergonomic RFI/EMI/chemical/weather resistant enclosure
  • Intrinsically safe design, CSA (C/US) & UL classified
  • Complies with EPA Method 21
  • Data logging cannot be added to a 5 or 6 gas EAGLE, or an EAGLE with more than 2 toxic sensors; any sensor that is not an Oxygen or LEL (Catalytic) sensor is counted as a toxic sensor
  • Data logging cannot be added to an EAGLE which has the extra loud buzzer added to EAGLE
  • Methane Elimination Switch is not operable for instruments calibrated to methane
  • High Capacity Hydrophobic/Dust AcroPac filter can only be used in an EAGLE with LEL/O2/H2S/CO and no super-toxics, or an EAGLE that has super-toxic sensors but no sensors for LEL/O2/H2S/CO
  • Standard factory calibration of LEL/ppm ranges is to methane (calibration to hexane, isobutene or other gases is optional); for units provided with an external methane elimination switch, calibration is to hexane

RKI 72-5404RK Specifications


Sample DistanceUp to 125' (38.1 m)
Detected GasesLEL & ppm/O2/H2S/Cl2
Click here for complete specifications on the RKI 72-5404RK

What's included with the RKI 72-5404RK


  • EAGLE Gas Monitor
  • Alkaline Batteries
  • Hydrophobic Probe
  • Hose
  • Internal Hydrophobic Filter
  • Inlet Fitting
  • Teflon Hose
  • Shoulder Strap

RKI 72-5404RK Offers



The RKI 72-5404RK EAGLE Gas Monitor is capable of detecting up to 6 different gases as a time, including ppm or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 and methane or hydrocarbons in LEL and % volume ranges. The EAGLE has a strong internal pump with a low flow auto shut off and alarm, allowing for quick response and recovery from distant sampling locations. With its ergonomic design and large glove friendly buttons, the EAGLE offers easy access to controls such as auto-calibration, alarm silence, demand zero and peak hold. Each channel has 2 alarm levels plus TWA and STEL alarms for toxic channels.

Features

  • Simultaneous detection of up to 6 different gases
  • Over 400 gas monitoring configurations
  • Wide range of toxic gases
  • LEL/ppm hydrocarbon detection
  • Low flow pump shut off and alarm
  • Methane elimination switch for environmental use
  • Security adjustment lockout switch
  • Up to 30 hours of continuous operation
  • Alkaline or Ni-Cad capability
  • IR sensors available for CO2, LEL CH4 or HC, Volume CH4 or HC
  • Transformer testing version available
  • Data logging option
  • Auto calibration/single gas calibration
  • Dual hydrophobic filters
  • Ergonomic RFI/EMI/chemical/weather resistant enclosure
  • Intrinsically safe design, CSA (C/US) & UL classified
  • Complies with EPA Method 21
  • Data logging cannot be added to a 5 or 6 gas EAGLE, or an EAGLE with more than 2 toxic sensors; any sensor that is not an Oxygen or LEL (Catalytic) sensor is counted as a toxic sensor
  • Data logging cannot be added to an EAGLE which has the extra loud buzzer added to EAGLE
  • Methane Elimination Switch is not operable for instruments calibrated to methane
  • High Capacity Hydrophobic/Dust AcroPac filter can only be used in an EAGLE with LEL/O2/H2S/CO and no super-toxics, or an EAGLE that has super-toxic sensors but no sensors for LEL/O2/H2S/CO
  • Standard factory calibration of LEL/ppm ranges is to methane (calibration to hexane, isobutene or other gases is optional); for units provided with an external methane elimination switch, calibration is to hexane

RKI 72-5404RK Specifications


Sample DistanceUp to 125' (38.1 m)
Detected GasesLEL & ppm/O2/H2S/Cl2
Click here for complete specifications on the RKI 72-5404RK

What's included with the RKI 72-5404RK


  • EAGLE Gas Monitor
  • Alkaline Batteries
  • Hydrophobic Probe
  • Hose
  • Internal Hydrophobic Filter
  • Inlet Fitting
  • Teflon Hose
  • Shoulder Strap
