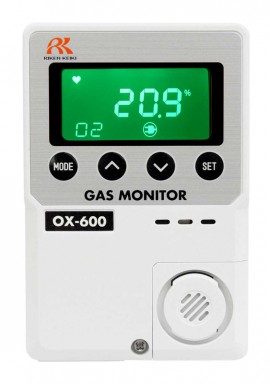

Sleek with a low-profile design, this battery-operated indoor single-gas detector detects O2 with a 0 to 25% range and 0.1% increments. Users are notified by an audible alarm tone and multicolored LED display when abnormal oxygen levels are present. In addition, this detector's long-lasting sensor is field-replaceable.
Sleek with a low-profile design, this battery-operated indoor single-gas detector detects O2 with a 0 to 25% range and 0.1% increments. Users are notified by an audible alarm tone and multicolored LED display when abnormal oxygen levels are present. In addition, this detector's long-lasting sensor is field-replaceable.
Features
Applications
| Gas Detected | Oxygen (O2) |
| Detection | Range: 0 to 25 vol% Principle: Galvanic cell |
| Sampling Method | Diffusion or remote sampling method with optional sensor extender cable |
| Indication Accuracy | Within ±0.7 vol% |
| Trouble Alarm / Self-Diagnosis | System trouble / sensor connection trouble |
| Relay Contact Rating | 125VAC, 1A or 30VDC, 1A (Resistive load) |
| Output Signal | 4-20 mA (Non-isolated, Resistive load under 300Ω) or 0 - 1VDC (Non-isolated) only for 0 to 1 VDC Alkaline battery specification |
| Power Sources | (120VAC±10%, 50/60Hz,) 24VDC±10%, or AA alkaline battery (2 each) |
| Power Consumption | AC specification: MAX 3.5VA, DC specification: MAX 2W |
| Battery Life | 1 year (no alarm) (alkaline battery version) |
| Operating Temperature | 0 to 104°F (-17 to 40°C) |
| Mounting Equipment | Wall mounting type (by using accessory mounting plate or mount at one switch box) Cable inlet: Up, down and left/right, or rear side |
| Dimensions | 3.15 x 4.72 x 1.2" (80 x 120 x 35.5 mm) |
| Weight | 7.05 oz (200 g) |
| Gas Detected | Oxygen (O2) |
| Detection | Range: 0 to 25 vol% Principle: Galvanic cell |
| Sampling Method | Diffusion or remote sampling method with optional sensor extender cable |
| Indication Accuracy | Within ±0.7 vol% |
| Trouble Alarm / Self-Diagnosis | System trouble / sensor connection trouble |
| Relay Contact Rating | 125VAC, 1A or 30VDC, 1A (Resistive load) |
| Output Signal | 4-20 mA (Non-isolated, Resistive load under 300Ω) or 0 - 1VDC (Non-isolated) only for 0 to 1 VDC Alkaline battery specification |
| Power Sources | (120VAC±10%, 50/60Hz,) 24VDC±10%, or AA alkaline battery (2 each) |
| Power Consumption | AC specification: MAX 3.5VA, DC specification: MAX 2W |
| Battery Life | 1 year (no alarm) (alkaline battery version) |
| Operating Temperature | 0 to 104°F (-17 to 40°C) |
| Mounting Equipment | Wall mounting type (by using accessory mounting plate or mount at one switch box) Cable inlet: Up, down and left/right, or rear side |
| Dimensions | 3.15 x 4.72 x 1.2" (80 x 120 x 35.5 mm) |
| Weight | 7.05 oz (200 g) |
