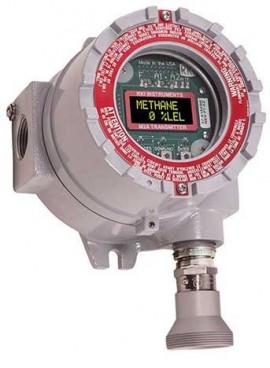

RKI 65-2641RK M2A Series Stand Alone Transmitter, H₂, UL version

Model: 65-2641RK

RKI 65-2641RK M2A Series Stand Alone Transmitter, H<sub>2</sub>, UL version-

Downloads: datasheet manual

RKI 65-2641RK M2A Series Stand Alone Transmitter, H₂, UL version

Model: 65-2641RK

With a hydrogen-specific measuring range of 0 to 100% LEL, this M2A series stand-alone sensor has a catalytic sensor type for LEL combustible gas and offers a transmitter with J-box.

Your Price	$1670.00 USD
Availability	3 to 4 Weeks
Quantity	Quantity

RKI 65-2641RK Offers

With four operating modes, the stand alone sensor operates with or without a controller.

Features

Direct digital readout with OLED cold temperature display
4-20 mA and digital Modbus outputs standard
2 fully programmable alarm relays and fail relay
Non-intrusive calibration via magnetic wand
Explosion proof construction
Patented water repellent sensor cover
User friendly setup, push buttons and OLED menus
Long-life sensors (2 + years typical)

Applications

Petrochemical plants
Refineries
Water and wastewater treatment plants
Pulp and paper mills
Manufacturing facilities
Automotive
Semiconductor plants
Chemical plants

RKI 65-2641RK Specifications

Sensors	Catalytic
Measuring Range	0 to 100% LEL
Version	UL
Resolution	1% LEL
Weather Resistant	Patented water repellent sensor coating
Display	Alphanumeric OLED display 8 characters per line; 2 lines for gas concentration readout User-friendly calibration and setup
Alarm Indication	Visual LEDs. Alarm 1, Amber; Alarm 2, Red; Fail, Red
Relative Humidity	5 to 95% RH non-condensing
Operating Voltage	10 to 30 VDC
Enclosure	Explosion proof for Class I, Div 1, Groups B, C, D

Click here for complete specifications on the RKI 65-2641RK

What's included with the RKI 65-2641RK

Stand Alone Sensor
J-Box

datasheet for the RKI 65-2641RK M2A Series Stand Alone Transmitter, H₂, UL version manual for the RKI 65-2641RK M2A Series Stand Alone Transmitter, H₂, UL version

Description ➕➖

RKI 65-2641RK Offers

With four operating modes, the stand alone sensor operates with or without a controller.

Features

Direct digital readout with OLED cold temperature display
4-20 mA and digital Modbus outputs standard
2 fully programmable alarm relays and fail relay
Non-intrusive calibration via magnetic wand
Explosion proof construction
Patented water repellent sensor cover
User friendly setup, push buttons and OLED menus
Long-life sensors (2 + years typical)

Applications

Petrochemical plants
Refineries
Water and wastewater treatment plants
Pulp and paper mills
Manufacturing facilities
Automotive
Semiconductor plants
Chemical plants

Specifications ➕➖

RKI 65-2641RK Specifications

Sensors	Catalytic
Measuring Range	0 to 100% LEL
Version	UL
Resolution	1% LEL
Weather Resistant	Patented water repellent sensor coating
Display	Alphanumeric OLED display 8 characters per line; 2 lines for gas concentration readout User-friendly calibration and setup
Alarm Indication	Visual LEDs. Alarm 1, Amber; Alarm 2, Red; Fail, Red
Relative Humidity	5 to 95% RH non-condensing
Operating Voltage	10 to 30 VDC
Enclosure	Explosion proof for Class I, Div 1, Groups B, C, D
