This machine offers automatic chucking. Use it for pipes, conduit and/or bolt stock.
This machine offers automatic chucking. Use it for pipes, conduit and/or bolt stock.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.

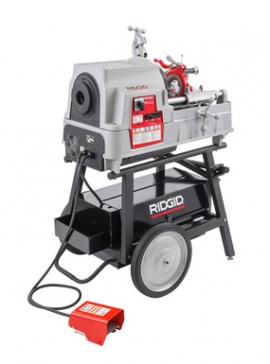

When you use the RIDGID 91142 535A Automatic Chuck Machine, you can work confidently without any interruptions. Because it automatically centers and chucks pipe for you, it promises consistent, professional-grade results every time. And thanks to the extra-large chip tray and 1.75 gal (6.6 L) oil reservoir, you can go longer without having to stop. Includes oil, hex keys and more. Dies/die heads sold separately.
Features
| Speed | 16/46/58 rpm |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Phase | Single |
| Motor | Induction |
| Power | 2 HP, 18 A draw |
| Die Head | Not included |
| Die | Not included |
| Oil Reservoir | 1.75 gal (6.6 L) |
| Chuck | Automatic, 4 reversible forged jaws |
| Pipe Threading Capacity | 0.125 to 2" (3 to 50 mm) nominal pipe size |
| Bolt Threading Capacity | 0.25 to 2" (6 to 50 mm) |
| Approval | CSA, UL (NRTLC) |
| Product Weight | 340 lbs (155 kg) |
| Manufacturer Warranty | Lifetime |
| Speed | 16/46/58 rpm |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Phase | Single |
| Motor | Induction |
| Power | 2 HP, 18 A draw |
| Die Head | Not included |
| Die | Not included |
| Oil Reservoir | 1.75 gal (6.6 L) |
| Chuck | Automatic, 4 reversible forged jaws |
| Pipe Threading Capacity | 0.125 to 2" (3 to 50 mm) nominal pipe size |
| Bolt Threading Capacity | 0.25 to 2" (6 to 50 mm) |
| Approval | CSA, UL (NRTLC) |
| Product Weight | 340 lbs (155 kg) |
| Manufacturer Warranty | Lifetime |
