Use this system to make expert inspections of narrow conduits. It comes with the D2B drum.
Use this system to make expert inspections of narrow conduits. It comes with the D2B drum.

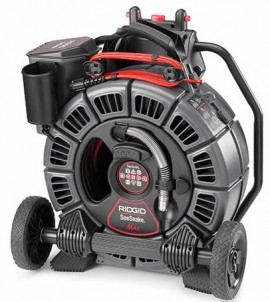

Conduct both basic and advanced inspections using the RIDGID 47533 SeeSnake MAX rM200B Camera System with D2B Drum. It features a dual-nested spring assembly to help you navigate difficult turns and reach farther distances. Meanwhile, the self-leveling camera and LEDs give you a clear view of what's going on inside the pipe, so that you can go on to diagnose and remedy any issues.
Features
| Pipe Capacity | 1.5 to 8" (38 to 203 mm) |
| Push Cable | Total diameter: 0.35" (9 mm); fiberglass core diameter: 0.2" (4.5 mm) |
| Minimum Bend Radius | 3.5" (90 mm) |
| Drum | D2B with 17" (432 mm) diameter |
| Camera Type | Self-leveling PAL |
| Light | 6 LEDs |
| Sonde Frequency | 512 Hz |
| Resolution | PAL 768 x 576 pixels |
| Spring Assembly Type | Dual nested; 17" (433 mm) spring |
| Monitor Compatibility | SeeSnake® |
| Docking Compatibility | CS6, CS65 |
| Receiver Compatibility | RIDGID SeekTech® SR-20, SR-24, SR-60, Scout™, NaviTrack® II |
| Product Length | 165' (50 m) push cable |
| Product Weight | 39.2 lbs (17.8 kg) total; 19.2 lbs (8.7 kg) drum |
| Manufacturer Warranty | Lifetime |
| Pipe Capacity | 1.5 to 8" (38 to 203 mm) |
| Push Cable | Total diameter: 0.35" (9 mm); fiberglass core diameter: 0.2" (4.5 mm) |
| Minimum Bend Radius | 3.5" (90 mm) |
| Drum | D2B with 17" (432 mm) diameter |
| Camera Type | Self-leveling PAL |
| Light | 6 LEDs |
| Sonde Frequency | 512 Hz |
| Resolution | PAL 768 x 576 pixels |
| Spring Assembly Type | Dual nested; 17" (433 mm) spring |
| Monitor Compatibility | SeeSnake® |
| Docking Compatibility | CS6, CS65 |
| Receiver Compatibility | RIDGID SeekTech® SR-20, SR-24, SR-60, Scout™, NaviTrack® II |
| Product Length | 165' (50 m) push cable |
| Product Weight | 39.2 lbs (17.8 kg) total; 19.2 lbs (8.7 kg) drum |
| Manufacturer Warranty | Lifetime |
