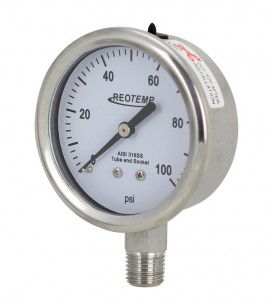

Ideal for industrial applications, this stainless steel pressure gauge is resistant to corrosion from both environment and media. Glycerin-filled for severe service and includes a paper tag. Additionally, it has an attractive crimp ring design with a pressure range of 0 to 100 psi.
Ideal for industrial applications, this stainless steel pressure gauge is resistant to corrosion from both environment and media. Glycerin-filled for severe service and includes a paper tag. Additionally, it has an attractive crimp ring design with a pressure range of 0 to 100 psi.
Features
Applications
| Pressure Range | 0 to 100 psi |
| Accuracy | 2 - 1.6 - 2%, ASME grade B+ |
| Ambient/Process Limits | -40/150°F (-40/65.56°C) |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Case Type | 304SS, case with crimped ring |
| Tube and Socket | 316SS |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Glycerin |
| Lens | Plastic |
| Option | Paper tag |
| Environmental Protection | NEMA 4X/IP65 |
| Dial Size | 2.5" (63.5 mm) |
| Dimensions | 3.5 x 1.2 x Ø2.68" (88.9 x 30.48 x Ø68.1 mm) |
| Weight | 0.4 lbs (181.44 g) |
