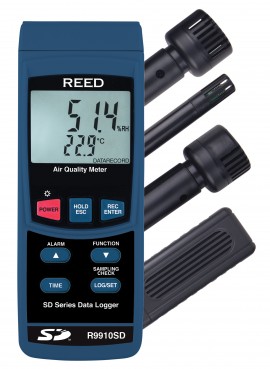

REED R9910SD Data Logging Air Quality Meter

Model: R9910SD | UPC: 800837004949

Downloads: datasheet manual

REED R9910SD Data Logging Air Quality Meter

Model: R9910SD | UPC: 800837004949

Real-time data logger with integrated SD memory card measures/records oxygen, carbon dioxide, carbon monoxide, ambient temperature, dew point and wet bulb temperatures and humidity.

Your Price	$1195.00 USD
Availability	5 Days22 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your R9910SD Data Logging Air Quality Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITH2) for only $430.00 USD

Traceable Calibration Certificate for your R9910SD Data Logging Air Quality Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITH2) for only $430.00 USD

Recommended Accessories

REED CA-05A Medium Soft Carrying Case

CA-05A

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB

RSD-16GB

REED RSD-ADP-EU AC Adapter, 220V

RSD-ADP-EU

REED R9910SD-CO Replacement Carbon Monoxide Probe

R9910SD-CO

REED R9910SD-TH Replacement Temperature & Humidity Probe

R9910SD-TH

REED R1500 Tripod

R1500

REED R9910SD Offers

The R9910SD is capable of recording readings from 3 probes simultaneously and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 sec to 8 hours. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

Measures oxygen (O₂), carbon dioxide (CO₂), carbon monoxide (CO), temperature and humidity
Records up to 3 readings simultaneously
User adjustable audible alarms
User selectable unit of measure (°C or °F)
Data hold and Max/Min functions
Real-time data logger with integrated SD memory card
User selectable sampling rate from 2 secs to 8 hrs
Easy-to-read backlit LCD display
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED R9910SD Specifications

Temperature
Measuring Ranges	32 to 122.0°F (0 to 50.0°C) Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C) Wet Bulb: -6.9 to 122.0°F (-21.6 to 50°C)
Accuracy	±1.5°F (±0.8°C)
Resolution	0.1°F/°C
Humidity
Measuring Ranges	5 to 95%RH
Accuracy	>70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH
Resolution	0.1%RH
CO₂
Measuring Ranges	0 to 4,000 ppm
Accuracy	<999 ppm: ±40 ppm >1,000 ppm ≤3000 ppm: ±5% rdg >3,000 ppm: ±250 ppm
Resolution	1 ppm
CO
Measuring Ranges	0 to 1,000 ppm
Accuracy	±(5% + 2 ppm)
Resolution	1 ppm
O₂
Measuring Ranges	0 to 30% O₂
Accuracy	±(1% + 0.2% O₂)
Resolution	0.10%
General Specifications
Alarm Threshold	<18% O₂
Response Time	1 second
Display	4-digit dual LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1 second to 8 hours, 59 minutes and 59 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 85%
Dimensions	Instrument: 7.0 x 2.7 x 1.8" (177 x 68 x 45mm) Humidity Probe Length: 7.8" (197mm) CO Probe Length: 5.9" (150mm) CO₂ Probe Length: 7.5" (190mm) O₂ Probe Length: 5.9" (150mm)
Weight	0.8lb (350g)

Click here for complete specifications on the REED R9910SD

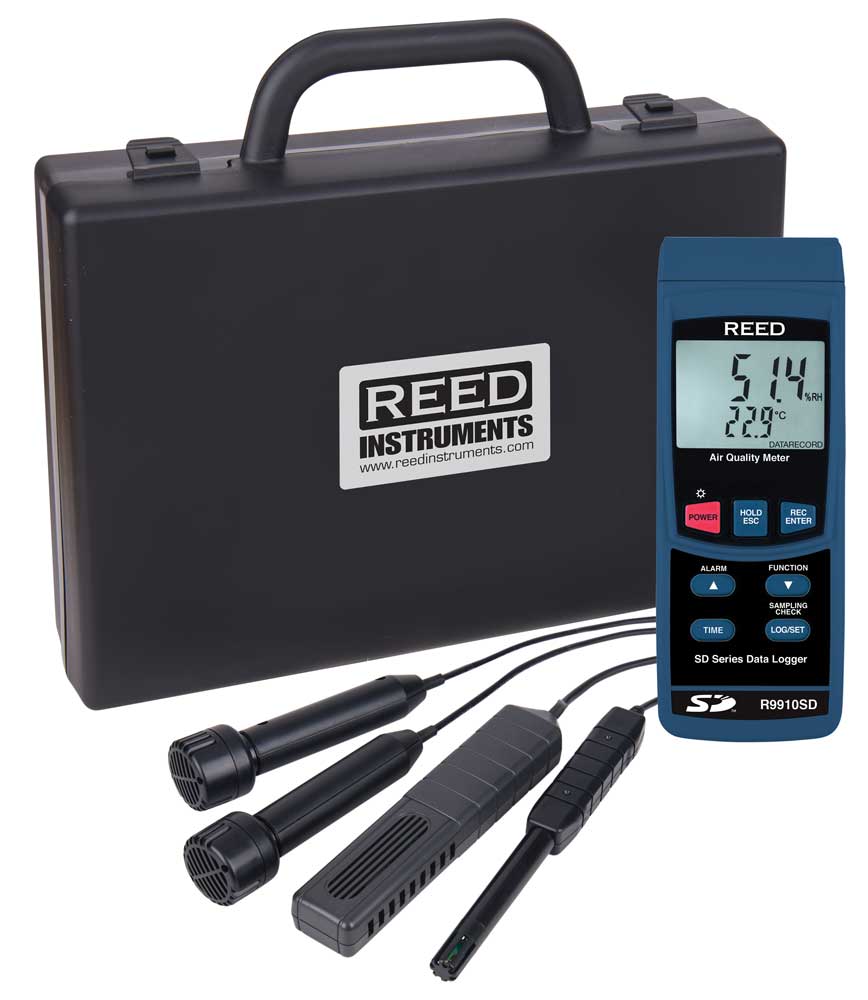

What's included with the REED R9910SD

Data Logging Air Quality Meter
Humidity Probe
Carbon Monoxide Probe
Carbon Dioxide Probe
Oxygen Probe
Hard Carrying Case
Batteries

Measure the quality of air with the REED R9910SD Data Logging Air Quality Meter

Indoor Air Quality Meters (also known as IAQ meters), monitor a number of factors including carbon dioxide, temperature and humidity - see 0:22. Want to test all 3 at once? No problem! The R9910SD has the capability to record up to 3 readings simultaneously - see 0:34. REED IAQ meters are used every day to monitor environmental conditions in schools, office buildings, factories and hospitals. If you're looking to monitor an environment for an extended period of time, the R9910SD can be mounted on a tripod and set up to datalog based on a user's sampling frequency. Save yourself a lot of work with the data logging features of this model. As a data logger, its capacity to automatically monitor and record environmental parameters over time, allow conditions to be measured, documented, analyzed and validated in 3 easy steps. Check out how in this quick video…Record data, save it on an SD card and quickly generate an Excel file - See 0:56. 1. Insert memory card 2. Record the needed data 3. Insert memory card in PC and open with Excel The REED R9910SD Data Logging Air Quality Meter comes complete with humidity probe, carbon monoxide probe, carbon dioxide probe, oxygen probe, carrying case and batteries. This meter also has a full list of optional accessories… View the complete list of accessories at 1:26. Want to know more about this meter? View a quick list of the specifications at 1:33.

Ideal Applications for the REED R9910SD

Environmental Monitoring in:

Schools
Office buildings
Greenhouses
Factories
Hotels
Hospitals
Areas where high levels of carbon dioxide are generated

datasheet for the REED R9910SD Data Logging Air Quality Meter manual for the REED R9910SD Data Logging Air Quality Meter

Click on a category to view a selection of compatible accessories with the REED R9910SD Data Logging Air Quality Meter.

Carrying Cases

REED CA-05A Medium Soft Carrying Case CA-05A

Features a main instrument compartment and a side pouch for accessories.

REED R8888 Medium Hard Carrying Case R8888

Professional grade, injection molded hard plastic case with customizable foam inserts.

Power Supplies

REED RSD-ADP-NA AC Adapter, 110V RSD-ADP-NA

For use with REED SD Series Data Loggers.

REED RSD-ADP-EU AC Adapter, 220V RSD-ADP-EU

For use with REED SD Series Data Loggers.

Memory Cards

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB RSD-16GB

For use with REED SD Series Data Loggers.

Probes

REED R9910SD-O2 Replacement Oxygen Probe R9910SD-O2

For use with the REED R9910SD & SD-9901 Data Logging Air Quality Meters.

REED R9910SD-CO2 Replacement Carbon Dioxide Probe R9910SD-CO2

For use with the REED R9910SD & SD-9901 Data Logging Air Quality Meters.

REED R9910SD-CO Replacement Carbon Monoxide Probe R9910SD-CO

For use with the REED R9910SD & SD-9901 Data Logging Air Quality Meters.

REED R9910SD-TH Replacement Temperature & Humidity Probe R9910SD-TH

For use with the REED R9910SD, SD-9901 & SD-3007 Data Logging Air Quality Meters.

Tripods

REED R1500 Tripod R1500

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
