REED R5055-NIST 1000A True RMS Digital Clamp Meter, includes Traceable Calibration Certificate

Model: R5055-NIST | UPC: 800837005595

REED R5055-NIST 1000A True RMS Digital Clamp Meter,-

Downloads: datasheet manual

More REED Products

Ask an Expert

REED R5055-NIST 1000A True RMS Digital Clamp Meter, includes Traceable Calibration Certificate

Model: R5055-NIST | UPC: 800837005595

AC/DC Clamp Meter with analog bargraph, backlight, min/max function, built-in non-contact voltage (NCV) detector and contact thermometer. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

AC/DC Clamp Meter with analog bargraph, backlight, min/max function, built-in non-contact voltage (NCV) detector and contact thermometer. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Your Price $300.00 USD
Availability 5 Days
Quantity

Recommended Accessories

REED R5400 Line Splitter-

REED R5400 Line Splitter

R5400

REED R2920 Type K Surface Probe-

REED R2920 Type K Surface Probe

R2920

REED R1020 Fused Test Lead Set-

REED R1020 Fused Test Lead Set

R1020

REED CA-05A Medium Soft Carrying Case-

REED CA-05A Medium Soft Carrying Case

CA-05A

REED R2990 Thermocouple Adapter-

REED R2990 Thermocouple Adapter

R2990

REED R5055-NIST Offers

This auto ranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle, contact temperature and up to 3000A AC with optional 18" flexible current probe (R5065). Featuring a 6000 count backlit LCD display with a 31-segment analog bargraph and double molded plastic housing. The R5055 keeps track of min/max readings and includes low pass filter and Low impedance (LoZ) mode.

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature
  • 6000-count backlit LCD display and analog bargraph
  • Flexible current probe can expand AC current measurements up to 3000A; (R5065, sold separately)
  • Ergonomic design fits in your hand and can be used while wearing protective gloves
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Built-in non-contact voltage detector with LED indicator
  • True RMS voltage and current for accurate measurements
  • Low Pass Filter and Low Impedance (LoZ) modes
  • Min/Max, display hold and relative mode
  • Diode test and continuity check functions
  • Durable double molded plastic housing
  • Cat. III 1000V, Cat. IV 600V safety rating

REED R5055-NIST Specifications

AC/DC Current
Range 60, 600, 1000A
Accuracy AC/DC: ±(2% rdg. +5 dgt.)
Resolution 0.01, 0.1, 1A
AC/DC Voltage
Range AC: 6, 60, 600, 1000V
DC: 600mV, 6, 60, 600, 1000V
Accuracy AC: ±(1.0% rdg. +8 dgt.)
DC: ±(0.5% rdg. +5 dgt.)
Resolution 0.1mV, 0.001V, 0.01V, 0.1V, 1V
Resistance
Range 600Ω, 6, 60, 600kΩ, 6, 60MΩ
Accuracy ±(1% rdg. +2 dgt.)
Resolution 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ
Capacitance
Range 60, 600.0nF, 6, 60, 600μF, 6, 60mF
Accuracy ±(4.0% + 5)
Resolution 0.01nF, 0.1nF, 0.001μF, 0.01μF, 0.1μF, 0.001mF, 0.01mF
Frequency
Range 10Hz, 1MHz
Accuracy ±(0.1% rdg. +3 dgt.)
Resolution 0.01Hz, 1kHz
Low Pass Filter (LPF) AC Voltage
Range 600, 1000V
Accuracy ±(2% rdg. +5 dgt.)
Resolution 0.1, 1V
Low Impedance (LoZ) AC Voltage
Range 600, 1000V
Accuracy ±(2% rdg. +5 dgt.)
Resolution 0.1, 1V
Temperature
Range -40 to 1832°F (-40 to 1000°C)
Accuracy ±(1.0% rdg. + 4°F)
±(1.0% rdg. + 2°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging/Manual
Low Impedance (LoZ) Yes
Low Pass Filter (LPF) Yes
True RMS Yes
Display 6000 count LCD display
Display Hold Yes
Max/Min Yes
Peak Hold N/A
Zero Push Button Adjustment Yes
Relative Mode Yes
Diode Test Yes
Backlit Display Yes
Analog Bargraph Yes (31-segment)
Continuity Check Audible signal if resistance ≤30Ω
Duty Cycle Yes
Non-Contact Voltage Detector Yes
Built-In Flashlight Yes
Kick Stand N/A
Autoshut Off Yes (after 15 mins)
Flexible Current Probe (optional) Yes (R5065, Extends to 3000A)
Power Supply 3 x AAA batteries
Low Battery Indicator Yes
Jaw Opening 1.7" (42mm), up to 1500 MCM
Overvoltage Category CAT. III 1000V, CAT. IV 600V
Product Certifications CE, ETL
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Dimensions 10.7 x 3.2 x 1.7" (272 x 81 x 43.5mm)
Weight 15.8oz (447g)
Click here for complete specifications on the REED R5055-NIST

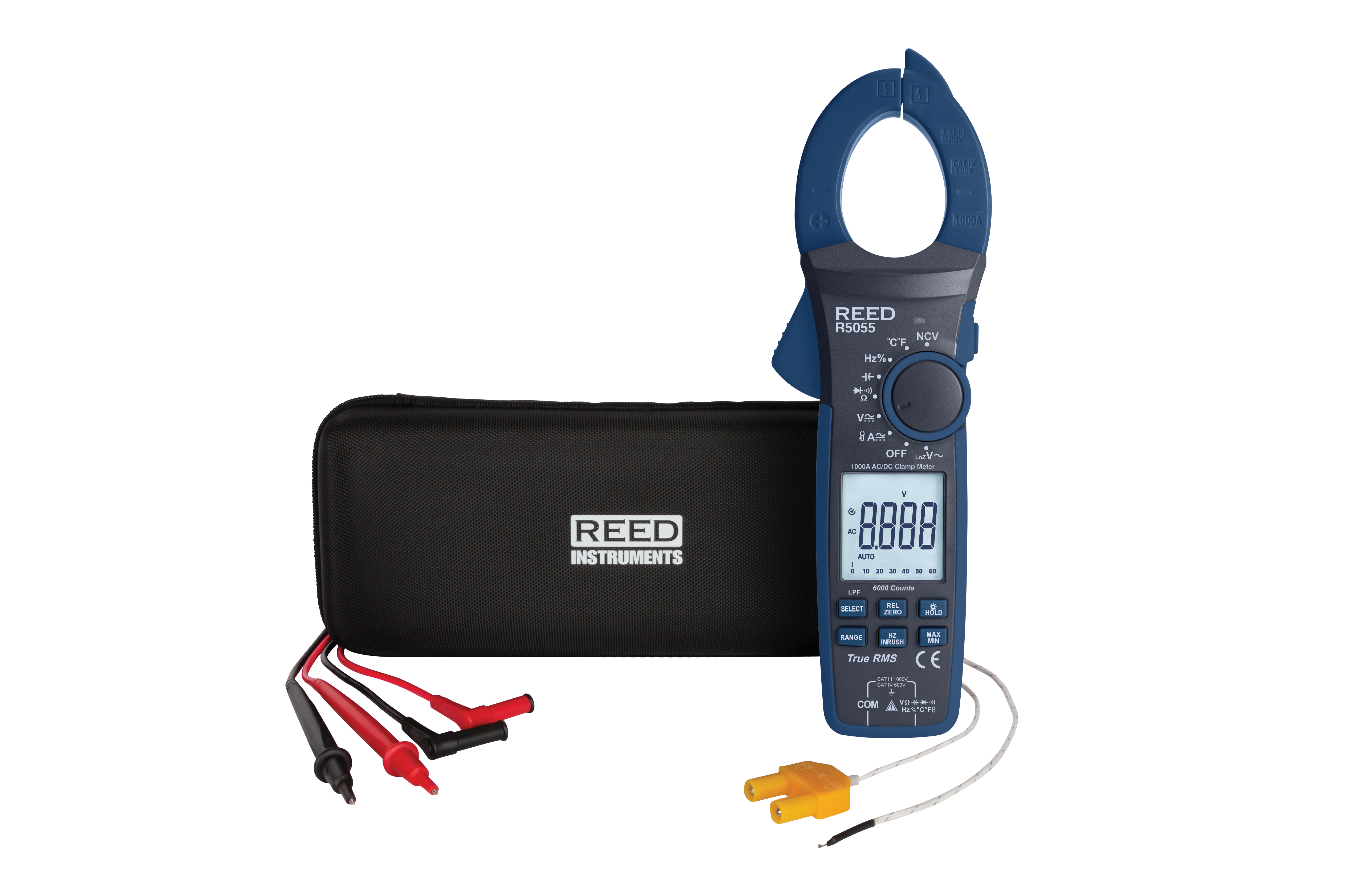

What's included with the REED R5055-NIST

  • AC/DC True RMS Clamp Meter
  • Traceable Calibration Certificate with full Data and Uncertainties
  • Type K Thermocouple
  • Test Leads
  • Batteries
  • Carrying Case

REED R5055 True RMS Digital Clamp Meter


Industrial maintenance teams love the R5055 true RMS digital clamp meter because it can perform a variety of measurements using only one tool! The R5055 can measure AC/DC current and voltage, resistance, frequency, capacitance, duty cycle, contact temperature, and up to 3000 A AC with the optional R5065 18" (45.72 cm) flexible current probe. Not only that, but it also features a 6000-count backlit LCD with a 31-segment analog bar graph and double molded plastic housing, keeps track of minimum/maximum readings, has a built-in LED flashlight, and includes a low pass filter and Low impedance (LoZ) mode.

Ideal Applications for the REED R5055-NIST

  • Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems
  • Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems
datasheet for the REED R5055-NIST 1000A True RMS Digital Clamp Meter, manual for the REED R5055-NIST 1000A True RMS Digital Clamp Meter,
