LEDs display motor rotation and phase status.
LEDs display motor rotation and phase status.

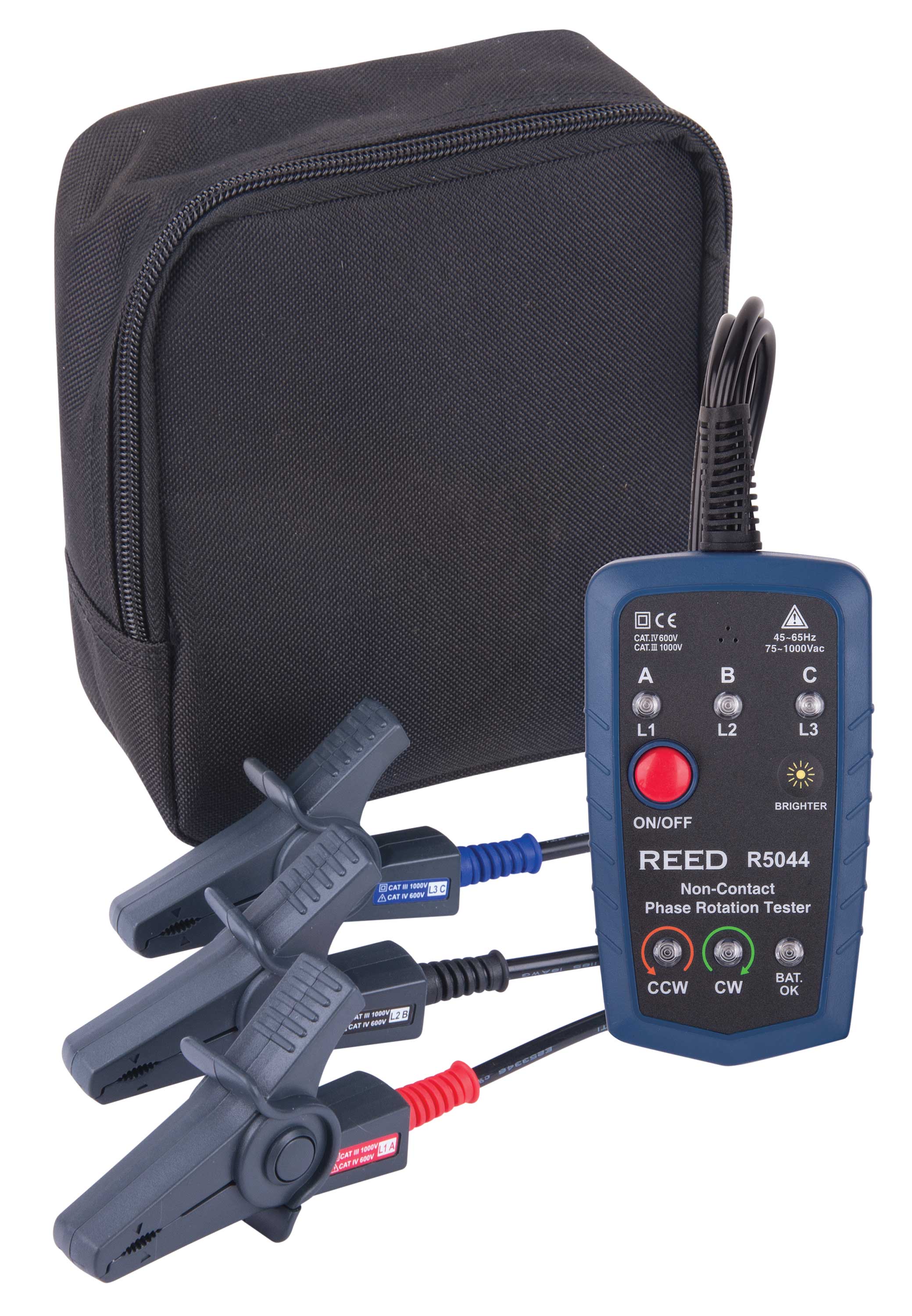

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5044 features non-metal alligator clips that allow for safe non-contact measurements and includes back mounted magnets for easy measurement.
Features
| Voltage Detection Method | Static Induction |
| Voltage Range | 75 to 1000VAC |
| Frequency | 45 to 65Hz |
| General Specifications | |
| Cable Length | 31.5" (800mm) |
| Cable Color | Red (L1)/ Black (L2)/ Blue (L3) |
| Indicators | Audible (Buzzer)/ Visual (LED) |
| Adjustable LED Brightness | Yes |
| Max. Alligator Clip Jaw Opening | 1.18" (30mm) |
| Magnetic Mounts | Yes |
| Auto Shut Off | Yes (after 5 minutes without power detection) |
| Power Supply | 9V battery |
| Low Battery Indicator | Yes |
| Overvoltage Category | CAT. III 1000V, CAT. IV 600V |
| Product Certifications | CE |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 5 x 2.8 x 1.8" (128 x 72 x 46 mm) |
| Weight | 13.2 oz (375 g) |
Click on a category to view a selection of compatible accessories with the REED R5044 Non-Contact Phase Rotation Tester.
