REED R4700SD-NIST Data Logging Environmental Meter, includes Traceable Calibration Certificate

Model: R4700SD-NIST | UPC: 800837004789

Downloads: datasheet manual

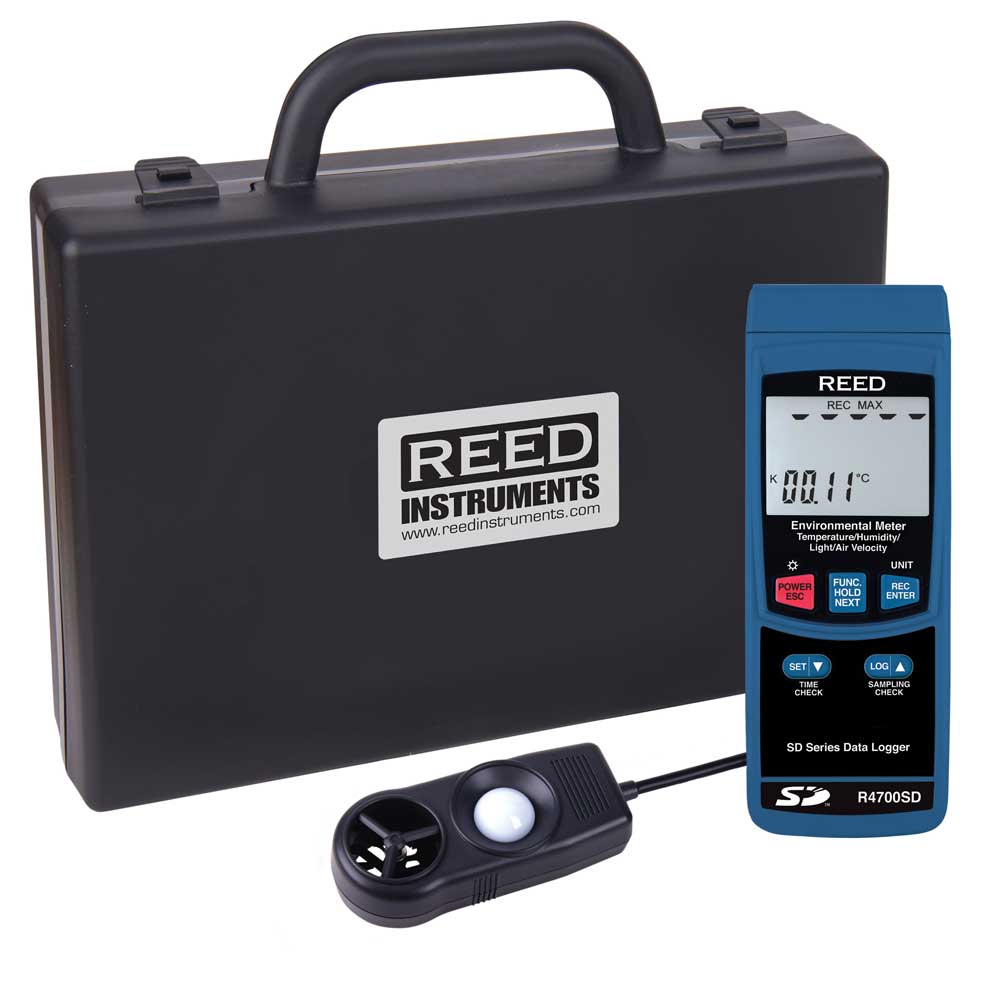

REED R4700SD-NIST Data Logging Environmental Meter, includes Traceable Calibration Certificate

Model: R4700SD-NIST | UPC: 800837004789

Real-time data logger with integrated SD memory card measures/records velocity and temperature, ambient and contact temperatures, relative humidity, and light levels. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Your Price	$779.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Recommended Accessories

REED CA-05A Medium Soft Carrying Case

CA-05A

REED R2920 Type K Surface Probe

R2920

REED R4700SD-SOUND Sound Level Adapter

R4700SD-SOUND

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB

RSD-16GB

REED RSD-ADP-EU AC Adapter, 220V

RSD-ADP-EU

REED R4700SD-PROBE Replacement Multi-Function Probe

R4700SD-PROBE

REED R4700SD-NIST Offers

The R4700SD is a 6-in-1 environmental meter that measures air velocity, air temperature, ambient temperature, relative humidity, light and contact temperature measurements. Has the ability to capture sound level measurements using the R4700SD-SOUND adapter (optional). The R4700SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Measures air velocity/temperature, relative humidity, light, and contact temperature
Measures sound level (dB) with R4700SD-SOUND (sold separately)
Air velocity is measured in m/s, ft/min, km/h, mph or knots
Light levels are measured in foot-candles or lux
Temperature is measured in °C or °F
Data hold and Min/Max functions
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED R4700SD-NIST Specifications

Air Velocity
Measuring Ranges	m/s: 0.4 to 30.0 km/h: 1.4 to 108 mph: 0.9 to 67.1 fpm: 79 to 5906 knots: 0.8 to 58.3
Accuracy	±2% + 0.2 m/s (0.8 km/h; 0.4 mph; 40 fpm; 0.4 knot)
Resolution	0.1 m/s, km/h, mph, knot, 1 fpm
Temperature
Measuring Ranges	Air Temperature: 32 to 122.0°F (0 to 50°C) Contact Temperature Type K Temperature: -148 to 2372°F (-100 to 1300°C) Type J Temperature: -148 to 2192°F (-100 to 1200°C)
Accuracy	Air Temperature: ±0.8°C (±1.5°F) Contact Temperature ≥-58°F (-50°C) ±(0.4% + 1.5°F (0.8°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
Resolution	0.1°F/°C
Humidity
Measuring Ranges	5 to 95% RH
Accuracy	>70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH
Resolution	0.1% RH
Light
Measuring Ranges	0 to 20,000 Lux (0 to 1,860 Ft-cd)
Accuracy	±(5% rdg ± 8 dgt)
Resolution	1 Lux/0.1 Ft-cd
Sound (Optional, R4700SD-SOUND Adapter Sold Separately)
Measuring Ranges	30 to 80dB 50 to 100dB 80 to 130dB
Accuracy	Basic Accuracy of ±3.5dB
Resolution	1dB
General Specifications
Response Time	1 second
Display	4-digit dual LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Zero Adjustment	Yes (for Light)
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 85%
Dimensions	Instrument: 5.3 x 2.4 x 1.3" (135 x 60 x 33mm) Probe: 4.1 x 1.8 x 1.1" (105 x 46 x 29mm)
Weight	1.1lb (515g)

Click here for complete specifications on the REED R4700SD-NIST

What's included with the REED R4700SD-NIST

Data Logging Environmental Meter
Traceable Calibration Certificate with full Data and Uncertainties
Multi-Function Probe
Hard Carrying Case
Batteries

Ideal Applications for the REED R4700SD-NIST

Meteorological stations
Environmental monitoring
