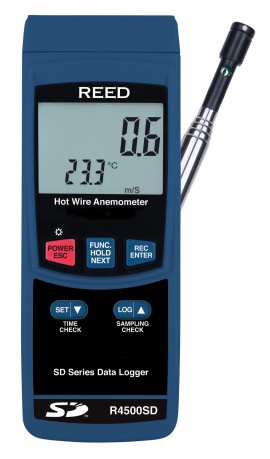

REED R4500SD Data Logging Hot Wire Thermo-Anemometer

Model: R4500SD | UPC: 800837004741

Downloads: datasheet manual

REED R4500SD Data Logging Hot Wire Thermo-Anemometer

Model: R4500SD | UPC: 800837004741

Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.

Your Price	$549.00 USD
Availability	5 Days58 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your R4500SD Data Logging Hot Wire Thermo-Anemometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIANE2) for only $325.00 USD

Traceable Calibration Certificate for your R4500SD Data Logging Hot Wire Thermo-Anemometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIANE2) for only $325.00 USD

Recommended Accessories

REED CA-05A Medium Soft Carrying Case

CA-05A

REED R2920 Type K Surface Probe

R2920

REED R1500 Tripod

R1500

REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB

RSD-16GB

REED RSD-ADP-EU AC Adapter, 220V

RSD-ADP-EU

REED R4500SD-PROBE Replacement Telescoping Hot Wire Probe

R4500SD-PROBE

REED R4500SD Offers

The R4500SD measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
Contact temperature measurement with type J/K thermocouple option
Thermistor sensor for fast air temperature readings
Hot wire probe for precise low air velocity measurements
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Data hold and Min/Max functions
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED R4500SD Specifications

Type	Hot Wire
Measuring Ranges	fpm: 40 to 4921 m/s: 0.2 to 25 km/h: 0.7 to 90 mph: 0.5 to 55.9 knots: 0.4 to 48.6
Air Temperature	32 to 122°F (0 to 50°C)
Type K Temperature	-148.0 to 2372.0°F (-100.0 to 1300°C)
Type J Temperature	-148.0 to 2192.0°F (-100.0 to 1200°C)
Accuracy	Air Velocity: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot) Air Temperature: ±0.8°C (1.5°F) Contact Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
Resolution	fpm: 1 m/s, km/h, mph, knot: 0.1
Temperature	0.1°F/°C
Telescope Probe Length	11 to 37" (280 to 940mm)
Response Time	<1 second
Display	5-digit, Dual LCD Display
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Selectable Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds)
External Memory	Yes, expandable up to 16GB with SD card (optional)
SD Card Class Compatibility	Class 4
Auto Shut-off	Yes (after 10 minutes/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA Batteries or AC Adapter (optional)
Data Output	Yes (RS-232)
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 80%
Dimensions	8 x 3 x 1.5" (203 x 76 x 38mm)
Weight	1.13lb (515g)

Click here for complete specifications on the REED R4500SD

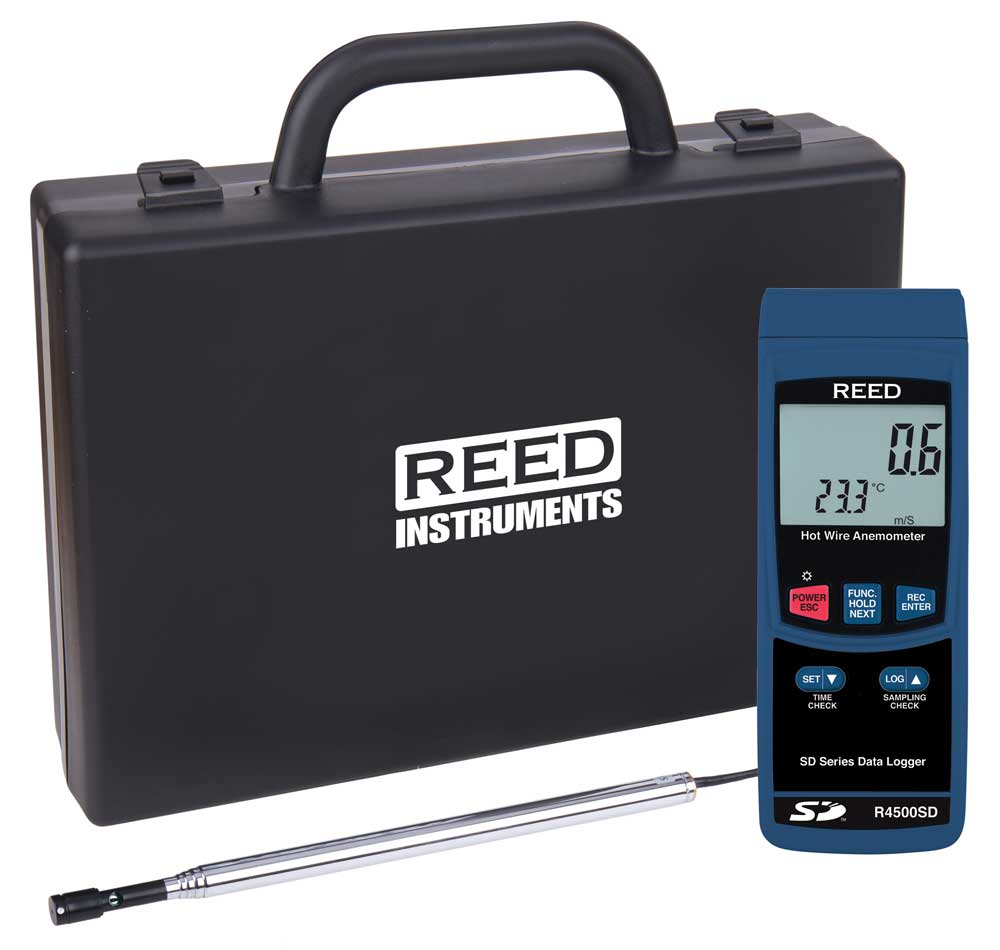

What's included with the REED R4500SD

Data Logging Hot Wire Thermo-Anemometer
Telescopic Hot Wire Probe
Hard Carrying Case
Batteries

Ideal Applications for the REED R4500SD

HVAC/R and refrigeration servicing
Detecting filter blockage
Condensers and chillers

datasheet for the REED R4500SD Data Logging Hot Wire Thermo-Anemometer manual for the REED R4500SD Data Logging Hot Wire Thermo-Anemometer
