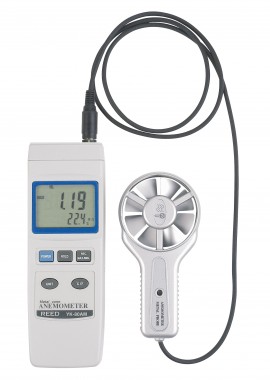

REED YK-80AM Rotating Vane Thermo-Anemometer

Model: YK-80AM

REED YK-80AM Rotating Vane Thermo-Anemometer

Model: YK-80AM

This rotating vane anemometer includes a heavy duty metal vane probe and a temperature range of 32 to 140°F (0 to 60°C).

This rotating vane anemometer includes a heavy duty metal vane probe and a temperature range of 32 to 140°F (0 to 60°C).

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

REED R4000SD Data Logging Vane Thermo-Anemometer-

REED R4000SD Data Logging Vane Thermo-Anemometer

Model: R4000SD

Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.


Recommended Accessories

REED R1500 Tripod-

REED YK-80AM Offers

Features

  • Rotating vane anemometer provides direct reading of air velocity and temperature
  • Dual display indicates m/s, ft/min, km/h, knots, mph and °C/°F
  • Includes a heavy-duty metal vane probe
  • RS232 output
  • Data hold, Record (Max/Min)
  • Auto shut off

REED YK-80AM Specifications

Air Velocity Range 0.4 to 35.0 m/s
1.4 to 126.0 km/h
0.9 to 78.3 mph
79 to 6890 ft/m
0.8 to 68.0 knots
Resolution 0.1 m/s, 0.1 km/h, 0.1 mph, 1 ft/m, 0.1 knot
Accuracy ±(2% rdg. + 2 dgt.)
Temperature Range 32 to 140°F (0 to 60°C)
Resolution 0.1°F (0.1°C)
Accuracy ±1.5°F (±0.8°C)
Power Supply 1 x 9V battery
Sensor Diameter ø 72mm dia.
Dimensions 8 x 2.7 x 1.2" (200 x 68 x 30mm)
Weight 7.75 oz (220g)
Click here for complete specifications on the REED YK-80AM

What's included with the REED YK-80AM

  • YK-80AM Rotating Vane Thermo-Anemometer
  • Heavy-duty metal vane probe
  • Hard Carrying Case
  • Batteries

Click on a category to view a selection of compatible accessories with the REED YK-80AM Rotating Vane Thermo-Anemometer.

REED R1500 Tripod R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
