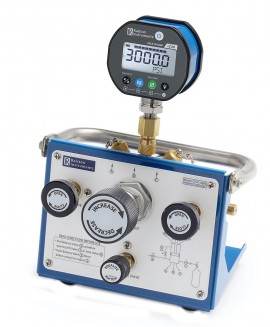

Provides accuracy for extreme precision, this compressed gas calibration kit can initiate solid static pressure within 5 to 10,000 psi. This kit includes a volume controller, calibration certificate, pressure reference, connectors, hoses, and cable.
Provides accuracy for extreme precision, this compressed gas calibration kit can initiate solid static pressure within 5 to 10,000 psi. This kit includes a volume controller, calibration certificate, pressure reference, connectors, hoses, and cable.
Comes with an external pressure calibrator and has a fine adjust vernier piston for calibration precise pressure settings.
Features
| Materials | Anodized aluminum, brass, powder coated steel, stainless steel |
| Maximum Pressure | 3000 psi/200 bar/20 MPa |
| Maximum Vacuum | 10 InHg/33.9 kPa |
| Operating Temperature Range | 0 to 130°F (-18 to 54°C) |
| Volume Controller Fine Adjustment Resolution | 0.00 psi/0.00 mbar/0.00 kPa |
| Pressure Reference Ingress Protection | IP67 (1 meter water submersion for 30 minutes) |
| Reference Connection Maximum Pressure | 5000 psi/350 bar/35 MPa |
| Process Connection Burst Pressure | 20000 psi/1380 bar/140 MPa |
| Hose Maximum Pressure | 6900 psi/475 bar/48 MPa |
| Hose Maximum Vacuum | -30.00 InHg/-101.6 kPa |
| Dimensions | 14 x 8.5 x 9" (35.56 x 21.59 x 22.86 cm) |
| Weight | 7.71 lbs (3.50 kg) |
| Materials | Anodized aluminum, brass, powder coated steel, stainless steel |
| Maximum Pressure | 3000 psi/200 bar/20 MPa |
| Maximum Vacuum | 10 InHg/33.9 kPa |
| Operating Temperature Range | 0 to 130°F (-18 to 54°C) |
| Volume Controller Fine Adjustment Resolution | 0.00 psi/0.00 mbar/0.00 kPa |
| Pressure Reference Ingress Protection | IP67 (1 meter water submersion for 30 minutes) |
| Reference Connection Maximum Pressure | 5000 psi/350 bar/35 MPa |
| Process Connection Burst Pressure | 20000 psi/1380 bar/140 MPa |
| Hose Maximum Pressure | 6900 psi/475 bar/48 MPa |
| Hose Maximum Vacuum | -30.00 InHg/-101.6 kPa |
| Dimensions | 14 x 8.5 x 9" (35.56 x 21.59 x 22.86 cm) |
| Weight | 7.71 lbs (3.50 kg) |
