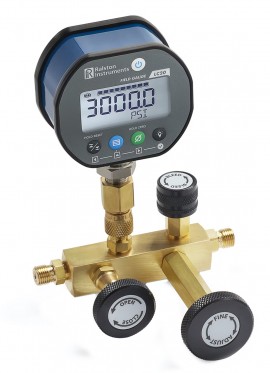

Ralston QTCM Calibration Manifold Kit with LC20, 1000 psi

Model: QTCM-KIT1-GP

Downloads: datasheet manual

Ralston QTCM Calibration Manifold Kit with LC20, 1000 psi

Model: QTCM-KIT1-GP

Provide a hand-held device for field calibrations, this calibration manifold kit promotes static calibration using nitrogen or other compressed gas. This kit includes a manifold, calibration certificate, pressure reference, connectors, cable, hoses, and bag.

Your Price	$1492.43 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Ralston QTCM-KIT1-GP Offers

Offers exceptional control and comes in stainless steel construction.

Features

Fine adjustment piston with soft-seated valves allow for ultra-precise pressure control
Compact, portable design requires minimum space for operation
Solid brass, for pressure calibration from 0 to 3000 psi
Calibration of static or high side of a differential pressure (DP) transmitter
Testing of analog gauges on gas well heads up to 5000 psi
Verification of analog or digital pressure devices in the field up to 5000 psi
Acquire test points with ease
Features Ralston Quick-test fittings, hoses and adapters for no-tool, no thread tape and leak free connections

Ralston QTCM-KIT1-GP Specifications

Materials	Brass
Seal Materials	Buna-N, delrin, teflon
Maximum Pressure	3000 psi/200 bar/20 MPa
Process Connection	¼" male NPT
Reference Connection	¼" female NPT
Operating Temperature Range	0 to 130°F (-18 to 54°C)
Manifold Burst Pressure	3000 psi/200 bar/20 MPa
Pressure Reference Ingress Protection	IP67 (1 meter water submersion for 30 minutes)
Reference Connection Maximum Vacuum	0.00 InHg/0.0 kPa
Process Connection Maximum Pressure	5000 psi/350 bar/35 MPa
Hose Maximum Vacuum	-30.00 InHg/-101.6 kPa
Dimensions	7.88 x 5 x 3.78" (20.02 x 12.7 x 9.6 cm)
Weight	2.71 lbs (1.23 kg)

Click here for complete specifications on the Ralston QTCM-KIT1-GP

What's included with the Ralston QTCM-KIT1-GP

Manifold
Calibration Certificate
Pressure Reference
3 x Connectors
2 x Hoses
Cable
Bag

How to set up and operate the Ralston QTCM and QSCM calibration manifold

In this training video, you'll learn how to set up and operate the QTCM and QSCM calibration manifolds for reducing leaks, saving you time. Rugged, portable, and handheld, these calibration manifolds are ideal for field calibrating pressure devices and relatively high pressures.

datasheet for the Ralston QTCM Calibration Manifold Kit with LC20, 1000 psi manual for the Ralston QTCM Calibration Manifold Kit with LC20, 1000 psi
