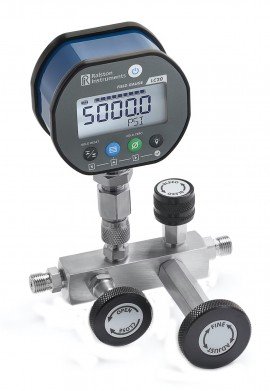

Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi

Model: QSCM-KIT1-GT

Downloads: datasheet manual

Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi

Model: QSCM-KIT1-GT

Provide a hand-held device for field calibrations, this calibration manifold kit promotes static calibration using nitrogen or other compressed gas. This kit includes a manifold, calibration certificate, pressure reference, connectors, hoses, cable, and bag.

Your Price	$1923.47 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Ralston QSCM-KIT1-GT Offers

Offers exceptional control and comes in stainless steel construction.

Features

Fine adjustment piston with soft-seated valves allow for ultra-precise pressure control
Compact, portable design requires minimum space for operation
Stainless steel, for pressure calibration from 0 to 5000 psi
Calibration of static or high side of a differential pressure (DP) transmitter
Testing of analog gauges on gas well heads up to 5000 psi
Verification of analog or digital pressure devices in the field up to 5000 psi
Acquire test points with ease
Features Ralston Quick-test fittings, hoses and adapters for no-tool, no thread tape and leak free connections

Ralston QSCM-KIT1-GT Specifications

Materials	Stainless steel
Seal Materials	Buna-N, delrin, teflon
Maximum Pressure	5000 psi/350 bar/35 MPa
Process Connection	¼" male NPT
Reference Connection	¼" female NPT
Operating Temperature Range	0 to 130°F (-18 to 54°C)
Manifold Burst Pressure	20000 psi/1380 bar/140 MPa
Pressure Reference Ingress Protection	IP67 (1 meter water submersion for 30 minutes)
Reference Connection Maximum Vacuum	0.00 InHg/0.0 kPa
Process Connection Maximum Pressure	5000 psi/350 bar/35 MPa
Hose Maximum Vacuum	-30.00 InHg/-101.6 kPa
Dimensions	7.88 x 5 x 3.78" (20.02 x 12.7 x 9.6 cm)
Weight	2.63 lbs (1.19 kg)

Click here for complete specifications on the Ralston QSCM-KIT1-GT

What's included with the Ralston QSCM-KIT1-GT

Manifold
Calibration Certificate
Pressure Reference
3 x Connectors
2 x Hoses
Cable
Bag

How to set up and operate the Ralston QTCM and QSCM calibration manifold

In this training video, you'll learn how to set up and operate the QTCM and QSCM calibration manifolds for reducing leaks, saving you time. Rugged, portable, and handheld, these calibration manifolds are ideal for field calibrating pressure devices and relatively high pressures.

datasheet for the Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi manual for the Ralston QSCM Calibration Manifold Kit with LC20, 5000 psi
