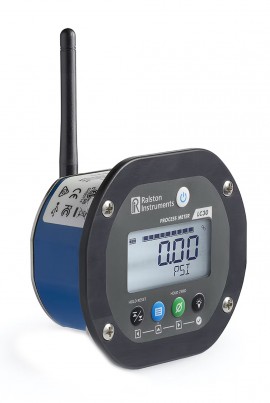

Image is for reference only, refer to product info for complete details.
Provides a robust device that measures and shows pressure readings on a large and backlighted screen, this dual pressure/vacuum sensor gauge has maximum pressures of 3000 psi/200 bar/20 MPa and 5 psi / 34 mbar / 30 kPa. Disclose high and low-temperature values with wireless radio for data logging and a back mount connection.
Provides a robust device that measures and shows pressure readings on a large and backlighted screen, this dual pressure/vacuum sensor gauge has maximum pressures of 3000 psi/200 bar/20 MPa and 5 psi / 34 mbar / 30 kPa. Disclose high and low-temperature values with wireless radio for data logging and a back mount connection.
Ideal for panel-mounted applications, gives complete pressure calibration solutions, and measures two process variables.
Features
Applications
| Pressure | Sensor A Maximum: 3000 psi/200 bar/20 MPa Sensor B Maximum: 5 psi/34 mbar/30 kPa Sensor A Burst: 12,000 psi/825 bar/83 MPa Sensor B Burst: 20 psi/1.4 bar/140 kPa |
| Sensor A Storage Temperature Range | -40 to 165°F (-40 to 75°C) |
| Operating Temperature Range | -4 to 120°F (-20 to 50°C) |
| Process Connection Location | Back mount |
| Materials | ABS/polycarbonate blend, powder coated aluminum |
| Ingress Protection | IP67 (1 meter water submersion for 30 minutes) |
| LCD Display | 2.4" (61 mm) segmented LCD display |
| Wireless Range | 330' (100 m) |
| Dimensions | 1.75 x 3.4 x 4.1" (4.45 x 8.64 x 10.41 cm) |
| Weight | 0.78 lbs (355 grams) |
