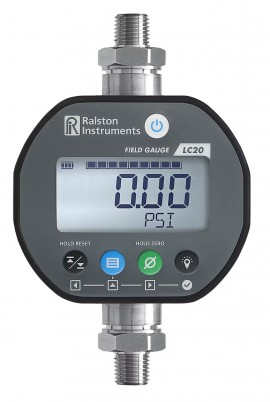

Image is for reference only, refer to product info for complete details.
Get reference-grade accuracy and durability with this handheld pressure gauge that measures pressure readings from dual connections, up to 30 psi on the top and 300 psi on the bottom. In addition, it features a large backlit display, an impressive ±0.1% full-scale accuracy, and is ideal for the field.
Get reference-grade accuracy and durability with this handheld pressure gauge that measures pressure readings from dual connections, up to 30 psi on the top and 300 psi on the bottom. In addition, it features a large backlit display, an impressive ±0.1% full-scale accuracy, and is ideal for the field.
Fast, accurate, and easy to use, this digital pressure gauge offers laboratory-grade accuracy to go and meets the rugged demands of the field. It is a durable and portable reference gauge you can take anywhere!
Built for the field
Fast, accurate, and easy to use
It's all about options
Applications
| Gauge | |
| Pressure | Maximum: 300 psi/20 bar/2 MPa Burst: 1200 psi/83 bar/8.3 MPa |
| Media Compatibility | Inert gas, natural gas, petroleum based oil, water |
| LCD Display | 2.4" (61 mm) segmented LCD Display |
| Process Connection | ¼" male NPT (ASME B1.20.1) |
| Data Logging | PC based (via USB) |
| Operating Temperature | -4 to 120°F (-20 to 50°C) |
| Wetted Materials | 316 stainless steel |
| Materials | ABS/polycarbonate blend, powder coated aluminum |
| Protections | Ingress protection: IP67 (3.28' [1 m] water submersion for 30 minutes) Protection class: Pollution Degree 2 (UL/IEC 61010-1) |
| Battery | Type: 2 x AA alkaline (IEC-LR6) Life: 1000 hours |
| Dimensions | 1.75 x 3.4 x 4.1" (4.45 x 8.64 x 10.41 cm) |
| Weight | 12.6 oz (355 g) |
| Sensors | |
| Pressure | Sensor A (bottom): Maximum: 300 psi/20 bar/2 MPa Burst: 1200 psi/83 bar/8.3 MPa Sensor B (top): Maximum: 30 psi/2 bar/200 kPa Burst: 120 psi/8.3 bar/830 kPa |
| Accuracy | ±0.1% of full scale (ASME B40.100 Grade 4A/ISO Class 0.1) |
| Process Connection | ¼" male NPT |
| Engineering Units | Sensor A (bottom): atm, bar, cmH2O at 4°C, inH2O at 39°C, kPa, MPa, mbar, psi, inHg at 39°F, kgf/cm2, mmHg at 0°C, Torr, mmH2O at 4°C, ftH2O at 39°F, cmHg at 0°C, oz/in2 Sensor B (top): atm, bar, cmH2O at 4°C, inH2O at 39°C, kPa, mbar, psi, inHg at 39°F, kgf/cm2, mmHg at 0°C, Torr, mmH2O at 4°C, ftH2O at 39°F, cmHg at 0°C, oz/in2 |
| Media Compatibility | Air, alcohol, antifreeze, ethylene glycol, hydraulic oil, inert gas, mineral oil, natural gas, petroleum based oil, skydrol, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil, water |
| Temperature | Operating: -4 to 120°F (-20 to 50°C) Storage: -40 to 165°F (-40 to 75°C) |
| Wetted Materials | 316 stainless steel |
| Wrench Size | ⅞" (23 mm) |
| Gauge | |
| Pressure | Maximum: 300 psi/20 bar/2 MPa Burst: 1200 psi/83 bar/8.3 MPa |
| Media Compatibility | Inert gas, natural gas, petroleum based oil, water |
| LCD Display | 2.4" (61 mm) segmented LCD Display |
| Process Connection | ¼" male NPT (ASME B1.20.1) |
| Data Logging | PC based (via USB) |
| Operating Temperature | -4 to 120°F (-20 to 50°C) |
| Wetted Materials | 316 stainless steel |
| Materials | ABS/polycarbonate blend, powder coated aluminum |
| Protections | Ingress protection: IP67 (3.28' [1 m] water submersion for 30 minutes) Protection class: Pollution Degree 2 (UL/IEC 61010-1) |
| Battery | Type: 2 x AA alkaline (IEC-LR6) Life: 1000 hours |
| Dimensions | 1.75 x 3.4 x 4.1" (4.45 x 8.64 x 10.41 cm) |
| Weight | 12.6 oz (355 g) |
| Sensors | |
| Pressure | Sensor A (bottom): Maximum: 300 psi/20 bar/2 MPa Burst: 1200 psi/83 bar/8.3 MPa Sensor B (top): Maximum: 30 psi/2 bar/200 kPa Burst: 120 psi/8.3 bar/830 kPa |
| Accuracy | ±0.1% of full scale (ASME B40.100 Grade 4A/ISO Class 0.1) |
| Process Connection | ¼" male NPT |
| Engineering Units | Sensor A (bottom): atm, bar, cmH2O at 4°C, inH2O at 39°C, kPa, MPa, mbar, psi, inHg at 39°F, kgf/cm2, mmHg at 0°C, Torr, mmH2O at 4°C, ftH2O at 39°F, cmHg at 0°C, oz/in2 Sensor B (top): atm, bar, cmH2O at 4°C, inH2O at 39°C, kPa, mbar, psi, inHg at 39°F, kgf/cm2, mmHg at 0°C, Torr, mmH2O at 4°C, ftH2O at 39°F, cmHg at 0°C, oz/in2 |
| Media Compatibility | Air, alcohol, antifreeze, ethylene glycol, hydraulic oil, inert gas, mineral oil, natural gas, petroleum based oil, skydrol, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil, water |
| Temperature | Operating: -4 to 120°F (-20 to 50°C) Storage: -40 to 165°F (-40 to 75°C) |
| Wetted Materials | 316 stainless steel |
| Wrench Size | ⅞" (23 mm) |
