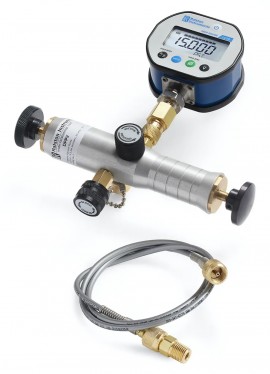

Ralston DPPV-PM15PSIG-D Pneumatic Pressure/Vacuum Pump Calibration Kit, 15 psi, 23 inHg

Model: DPPV-PM15PSIG-D

Ralston DPPV-PM15PSIG-D Pneumatic Pressure/Vacuum Pump Calibration Kit, 15 psi, 23 inHg-

Downloads: datasheet

More Ralston Products

Ask an Expert

Ralston DPPV-PM15PSIG-D Pneumatic Pressure/Vacuum Pump Calibration Kit, 15 psi, 23 inHg

Model: DPPV-PM15PSIG-D

Use the kit to perform accurate calibrations. The kit comes with a pneumatic pressure/vacuum hand pump, pressure gauge, reference and process connections and a hose.

Use the kit to perform accurate calibrations. The kit comes with a pneumatic pressure/vacuum hand pump, pressure gauge, reference and process connections and a hose.

Your Price $1204.08 USD
Availability 6 to 7 Weeks
Quantity

Ralston DPPV-PM15PSIG-D Offers



Perform precise calibrations with the Ralston DPPV-PM15PSIG-D Pneumatic Pressure/Vacuum Pump Calibration Kit. With a variety of supplies, the kit makes it easy to calibrate your equipment. The Quick-Test hose can handle up to 6,900 psi of pressure.

Features

  • Hand pump handles up to 125 psi, 8.6 bar or 860 kPa of pressure as well as up to 23 inHg or 77.9 kPa of vacuum, and offers 0.01 psi and 0.07 mbar fine adjustment resolution
  • Pump works in temperatures from 0 to 130°F (-18 to 54°C) and is designed for use with air, inert gas and natural gas
  • Pump is equipped with male Quick-Test and male Quick-Test with cap and chain connections
  • Anodized aluminum and brass construction of the hand pump provides durability
  • LC10 pressure gauge handles up to 15 psi, 1 bar or 100 kPa and up to 30 inHg or 101.6 kPa of vacuum, and withstands temperatures from -4 to 122°F (-20 to 50°C)
  • Gauge is designed for use with air, alcohol, antifreeze, ethylene glycol, hydraulic oil, inert gas, mineral oil, natural gas, petroleum-based oil, Skydrol, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil and water
  • Boasts atm, bar, cmH2O @4°C, inH2O @39°C, kPa, mbar, psi, inHg @39°F, kgf / cm², mmHg @0°C, Torr, mmH2O @4°C, ftH2O @39°F, cmHg @ 0°C and oz / in² engineering units
  • Transfer data to your PC using the USB connection
  • 0.25" (6.4 mm) female NPT x female Quick-Test reference connection handles up to 5,000 psi and operates in temperatures up to 225° (up to 105°C)
  • 0.25" (6.4 mm) male NPT x male Quick-Test process connection handles up to 5,000 psi and operates in temperatures from 0 to 225° (-18 to 105°C)
  • Reference and process connections are constructed of brass and feature Buna-N seals for durability
  • 3' (0.91 m) hose boasts female Quick-Test ends for simple setup, and the hose is built to withstand pressure of 6,900 psi
  • Made in the USA

Ralston DPPV-PM15PSIG-D Specifications


Application(s)Perform accurate calibrations
ApprovalsCSA Standard C22.2 No. 61010-1, UL / IEC / EN / AS Standard No. 61010-1, North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C), ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50°C), IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50°C), UN/DOT 38.3 (Lithium Batteries), Pressure Equipment Directive 2014/68/EU, Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU
Product HeightHand pump: 3.4" (87 mm); Pressure reference: 4.1" (11 cm)
Product TypeCalibration kit
Number Of Batteries Required1
Product LengthHand pump: 3.8" (97 mm); Pressure reference: 1.75" (45 mm); Reference connection: 1.52" (39 mm); Process connection: 1.29" (33 mm); Hose: 3' (0.91 m)
Product WidthHand pump: 5.1" (13 cm); Pressure reference: 3.4" (87 mm); Reference connection: 0.75" (20 mm); Process connection: 0.56" (15 mm)
Product WeightHand pump: 1.9 lb (860 g); Pressure reference: 12.6 oz (355 g)
Battery TypeAA
Item(s) IncludedPneumatic pressure/vacuum hand pump, LC10 pressure gauge with bottom connection, 0.25" (6.4 mm) female NPT x female Quick-Test reference connection, 0.25" (6.4 mm) male NPT x male Quick-Test process connection, 3' (92 cm) Quick-Test hose, 6.6' (2 m) USB cable
MaterialMetal
Power SourceBattery powered
Power Requirements2 x AA batteries
Battery Life1,500 hours
Click here for complete specifications on the Ralston DPPV-PM15PSIG-D

What's included with the Ralston DPPV-PM15PSIG-D


  • DPPV Pneumatic Pressure/Vacuum Hand Pump
  • LC10-GC2M Pressure Gauge
  • QTHA-2FBA 0.25" (6.4 mm) Female NPT x Female Quick-Test Reference Connection
  • QTHA-2MB0 0.25" (6.4 mm) Male NPT x Male Quick-Test Process Connection
  • QTQT-HOS-3ft 3' (92 cm) Quick-Test Hose
  • DGAU-0163 6.6' (2 m) USB Cable
datasheet for the Ralston DPPV-PM15PSIG-D Pneumatic Pressure/Vacuum Pump Calibration Kit, 15 psi, 23 inHg
