Ralston DPPV-KIT3-GC Pressure/Vacuum Pump Calibration Kit, ±15 psi, LC10 gauge

Model: DPPV-KIT3-GC

Ralston DPPV-KIT3-GC Pressure/Vacuum Pump Calibration Kit, &plusmn;15 psi, LC10 gauge-

Downloads: datasheet

Ralston DPPV-KIT3-GC Pressure/Vacuum Pump Calibration Kit, ±15 psi, LC10 gauge

Model: DPPV-KIT3-GC

The pressure kit comes with a hand pump, a hose, a carrying case, a bag and more. The pump is designed for use with air, inert gas and natural gas.

Your Price	$1529.73 USD
Availability	4 to 5 Weeks
Quantity	Quantity

Ralston DPPV-KIT3-GC Offers

Use the Ralston DPPV-KIT3-GC Pressure/Vacuum Pump Calibration Kit for a range of pressure applications. The pump is designed for use with air, inert gas and natural gas and is made of anodized aluminum, brass and stainless steel for strength. The kit also comes with a process connection, a hose, a carrying case and a zippered nylon bag.

Features

Pump is made of anodized aluminum, brass and stainless steel and features Buna-N and Delrin seal construction for strength and protection from leaks
Pressure reference provides PC-based data logging via USB
Pressure reference provides a range of different engineering units, including atm, bar, cmH₂O at 39.2°F (4°C), inH₂O at 102.2°F (39°C), kPa, mbar, psi, inHg at 39°F (3.9°C), mmHg&32°F (0°C), kgf/cm⊃2, Torr, ftH₂O at 39°F (3.9°C), cmHg at 32°F (0°C) and oz/in⊃2
Pressure reference is made of powder-coat aluminum and an ABS/polycarbonate blend and offers IP67 ingress protection for submersion in 3.3' (1 m) of water for up to 30 minutes
Pressure reference features a segmented 2.4" (6.1 cm) LCD screen for easy viewing
Process connection is made of brass with a Buna-N seal
Case allows you to safely store the pump
Case offers MIL-STD-3010C impact resistance and MIL-STD-810F IP67 ingress protection for submersion in 3.3' (1 m) of water for 30 minutes
Made in the USA

Ralston DPPV-KIT3-GC Specifications

Application(s)	Pressure applications
Rechargeable Battery	No
Approvals	Pressure reference: CSA C22.2 No. 61010-1, UL/IEC/EN/AS No. 61010-1, Pressure Equipment Directive 2014/68/EU, Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU
Item(s) Included	Pump, digital pressure gauge and accessories
Material	Stainless steel
Power Source	Pneumatic
Power Requirements	50 mA at 5 VDC (pressure reference)
Battery Life	1,500 hours
Product Length	Pump: 3.8" (97 mm); Pressure reference: 1.75" (45 mm); Reference connection: 1.52" (39 mm); Process connection: 1.29" (33 mm); Hose: 3' (92 cm); Case: 14.9" (38 cm); Bag: 6" (16 cm)
Product Width	Pump: 5.1" (13 cm); Pressure reference: 3.4" (87 mm); Reference connection: 0.75" (20 mm); Process connection: 0.56" (15 mm); Case: 12.1" (31 cm); Bag: 1" (26 mm)
Product Weight	Pump: 1.9 lbs (860 g); Pressure reference: 12.6 oz (355 g); Case: 6 lbs (2.72 kg); Bag: 3 oz (85 g)
Product Type Compatibility	Compatible media: air, inert gas, natural gas (pump); inert gas, natural gas, petroleum-based oil, water, air, alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, skydrol, windshield washer fluid, transmission fluid, light motor oil, Ralston calibration oil (pressure reference); air, inert gas, natural gas, petroleum-based oil, water (hose)
Battery Type	AA
Product Height	Pump: 3.4" (87 mm); Pressure reference: 4.1" (11 cm); Case: 6.9" (18 cm); Bag: 7" (18 cm)
Product Type	Calibration kit
Accuracy	±0.25% of full scale (pressure reference)
Number Of Batteries Required	2

Click here for complete specifications on the Ralston DPPV-KIT3-GC

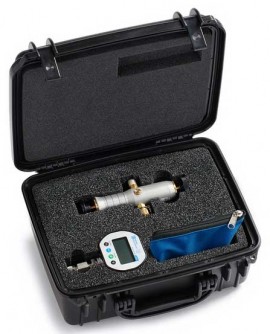

What's included with the Ralston DPPV-KIT3-GC

Pneumatic Pressure/Vacuum Hand Pump
LC10 Pressure Gauge with 0.25" (6.35 mm) Male NPT Bottom Connection
0.25" (6.35 mm) Female NPT x Female Quick-Test Reference Connection with No Check-Valve
0.25" (6.35 mm) Male NPT x Male Quick-Test Process Connection with No Check-Valve
3' (92 cm) Quick-Test Hose
Carrying Case
Zippered Nylon Bag
6.6' (2 m) USB-A to Micro USB-B Cable
