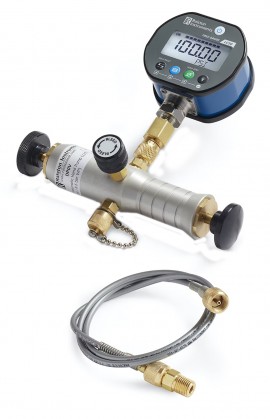

Ralston DP0V Pneumatic Pump Kit with 30 psi/210 kPa LC20 gauge, 3ft hose, 1/4" MNPT adapter

Model: DP0V-KIT6-VF

Downloads: datasheet manual

Ralston DP0V Pneumatic Pump Kit with 30 psi/210 kPa LC20 gauge, 3ft hose, 1/4" MNPT adapter

Model: DP0V-KIT6-VF

Produce a precise test pressure, this pneumatic pump kit is easy to operate and connected without any tools. This kit comes with a calibration certificate, hand pump, pressure reference, connectors, cable, and a hose.

Your Price	$1147.14 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Ralston DP0V-KIT6-VF Offers

Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations

Features

Pressure Reference: LC20 pressure gauge, -15 to 30 psi / -100 to 200 kPa, 1/4" Male NPT bottom connection
Hand Pump: DP0V Pneumatic Hand Pump
Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

Ralston DP0V-KIT6-VF Specifications

Materials	Anodized Aluminum, Brass, Stainless Steel
Min Operating Temperature	0 °F / -18 °C
Country of origin	USA
Pressure Reference	Digital pressure gauge, 100 PSIG Pressure
Seal Materials	Buna-N, Delrin, Teflon
Max Vacuum	0 InHg / 0.0 kPa
Process Connection	1/4" Male NPT
Max Operating Temperature	130 °F / 54 °C
Reference Connection	1/4" Female NPT
Max Pressure	125 PSI / 8.6 bar / 860 kPa
Weight	2.15 lbs / 975 grams
Dimensions	H: 8 in (20.32 cm) x W: 7.93 in (20.14 cm) x D: 2.9 in (7.37 cm)

Click here for complete specifications on the Ralston DP0V-KIT6-VF

What's included with the Ralston DP0V-KIT6-VF

Ralston DP0V Pneumatic Pump Kit with 30 psi/210 kPa LC20 gauge, 3ft hose, 1/4" MNPT adapter
