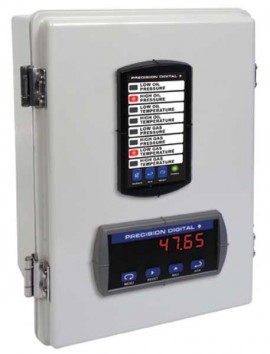

For use to mount up to 10 precision digital multimeters on walls and other vertical structures. The meters are mounted horizontally on the door of the enclosure, which allows for the programming and operation of the meter. Also, this unit features 2 cutouts and accommodates 1 A, B, C or E, and 1 D meter.
For use to mount up to 10 precision digital multimeters on walls and other vertical structures. The meters are mounted horizontally on the door of the enclosure, which allows for the programming and operation of the meter. Also, this unit features 2 cutouts and accommodates 1 A, B, C or E, and 1 D meter.
Features
| Horizontal Cutouts | |
| Outside Dimensions | 11.8 x 7.9 x 7.0" (300 x 201 x 178 mm) |
| Inside Dimensions | 11.0 x 7.0 x 6.9" (281 x 180 x 176 mm) |
| Mounting Dimensions | 9.96 x 7.72" (253 x 196 mm) |
| Weight | 3.15 lbs (1.43 kg) |
| General Specifications | |
| Material | Thermoplastic polyester |
| Color | Gray |
| Meters | Houses up to 32.8' (10 m) |
| Meter Mounting Method | Through cover |
| Cover Mounting Method | Hinge/hasp |
| Operating Temperature | -40 to 248°F (-40 to 120°C) |
| Ratings | NEMA 4X |
| Approvals | UL, C-UL |
| Horizontal Cutouts | |
| Outside Dimensions | 11.8 x 7.9 x 7.0" (300 x 201 x 178 mm) |
| Inside Dimensions | 11.0 x 7.0 x 6.9" (281 x 180 x 176 mm) |
| Mounting Dimensions | 9.96 x 7.72" (253 x 196 mm) |
| Weight | 3.15 lbs (1.43 kg) |
| General Specifications | |
| Material | Thermoplastic polyester |
| Color | Gray |
| Meters | Houses up to 32.8' (10 m) |
| Meter Mounting Method | Through cover |
| Cover Mounting Method | Hinge/hasp |
| Operating Temperature | -40 to 248°F (-40 to 120°C) |
| Ratings | NEMA 4X |
| Approvals | UL, C-UL |
