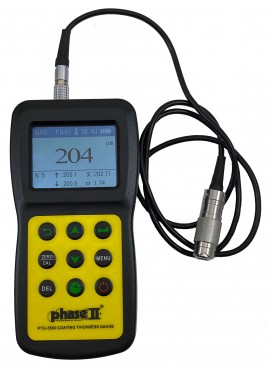

Phase II PTG-5500 Coating Thickness Gauge

Model: PTG-5500

Phase II PTG-5500 Coating Thickness Gauge

Model: PTG-5500

Reliable and versatile, this coating thickness gauge performs two different methods of calculating coating thickness. By utilizing an auto-detect probe, the thickness gauge detects the thickness of a non-magnetic coating on a magnetic substrate or identifies an insulating coating on a non-magnetic conductive substrate (non-ferrous).

Sale Price	$918.00 USD
Regular Price	$1020.00 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Phase II PTG-5500 Offers

Coating thickness testing performance is both non-destructive and extremely accurate.

Features

Two measuring modes
Automatic temperature compensation
Displays five statistical values
Simple 1-step calibration using supplied metal plate and reference shims
Close to 500 measurements in memory (99 measurements/group x 5 groups)
Alarm when measurements out of tolerance
Displays remaining power in battery

Applications

Coating thickness measurement

Phase II PTG-5500 Specifications

Measuring Principle	Magnetic induction and Eddy current
Measuring Range	Magnetic induction: 0 to 1500 um (0 to 59 mil) Eddy current: 0 to 1500 um (0 to 59 mil)
Resolution (Selectable)	Magnetic induction: 1 um , 0.1 um, .01um Eddy current: 1 um , 0.1 um, .01um
Accuracy (Zero Calibration)	Magnetic induction: ±(2%H+1) um Eddy current: ±(2%H+1) um
Accuracy (Minimum Radius of Curvature)	Magnetic induction: Cx. 1.5 mm Eddy current: Cx. 3 mm
Measuring Condition (Minimum Radius of Area)	Magnetic induction: Φ7 mm Eddy current: Φ5 mm
Measuring Condition (Critical Thickness of Plate)	Magnetic induction: 0.5 mm Eddy current: 0.3 mm

What's included with the Phase II PTG-5500

Coating Thickness Gauge
Steel Substrate Sample
Aluminum Substrate Sample
4 x Calibrated Thickness Sample
Cable
Carrying Case
Batteries
Data Output Software
Operation Manual
