"Our job is helping you do your job"

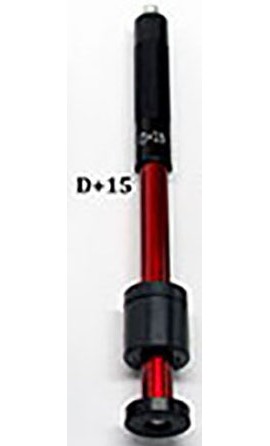

Slim front section with coil set back. Hardness measurements in grooves, recessed surface.
Slim front section with coil set back. Hardness measurements in grooves, recessed surface.
| Impact energy | 11Nmm |
| Mass of the impact body | 7.8g |
| Test tip Hardness | 1600HV |
| Test tip Diameter | 3mm |
| Test tip Material | Tungsten carbide |
| Diameter | 20mm |
| Length | 162mm |
| Weight | 80g |
| Max. hardness of sample | 940HV |
| Max. roughness depth Rt | 10 m m |
| Average roughness Ra | 2 m m |
