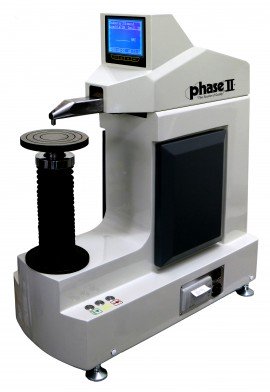

Fast and accurate, this fully automatic universal hardness tester applies test force via a closed-loop control unit with a load cell. Features a DC motor and an electronic measurement and control unit that replaces traditional dead weights. Highly accurate, the tester comes complete with simple plug-and-play technology.
Fast and accurate, this fully automatic universal hardness tester applies test force via a closed-loop control unit with a load cell. Features a DC motor and an electronic measurement and control unit that replaces traditional dead weights. Highly accurate, the tester comes complete with simple plug-and-play technology.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.
Allows for a quicker and easier installation than traditional dead weight type hardness testing machines.
Features
Applications
| Test Force | Superficial Rockwell: 147.1 N (15 kgf), 294.3 N (30 kgf), 441.3 N (45 kgf) Regular Rockwell: 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf) Brinell: 15.625 kgf，31.25 kgf, 62.5 kgf，100 kgf, 125 kgf, 187.5 kgf，250 kgf Vickers: 3 kgf，10 kgf，20 kgf，30 kgf，50 kgf，100 kgf |
| Load Dwell Duration | 2 to 50 s, can be set and stored |
| Resolution | 0.1 HR |
| Display | High definition backlight LCD |
| Operation | Menu selectable, membrane keypad |
| Limit Setting | Upper/lower limits setting and alarming |
| Data Statistics | Average, ,aximum, minimum, S, R |
| Curved Surface | Auto correction |
| Memory | Maximum 400 items of test results stored automatically |
| Testing Capacity | 300 mm (vertical) , 220 mm (horizontal) |
| Power Supply | AC, 220 V/110 V, 50 to 60 Hz, 4 A (convertible) |
| Dimensions | 27.1654 x 11.0236 x 33.8583" (690 x 280 x 860 mm) |
| Weight | 86 kg (190 lbs) |
| Test Force | Superficial Rockwell: 147.1 N (15 kgf), 294.3 N (30 kgf), 441.3 N (45 kgf) Regular Rockwell: 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf) Brinell: 15.625 kgf，31.25 kgf, 62.5 kgf，100 kgf, 125 kgf, 187.5 kgf，250 kgf Vickers: 3 kgf，10 kgf，20 kgf，30 kgf，50 kgf，100 kgf |
| Load Dwell Duration | 2 to 50 s, can be set and stored |
| Resolution | 0.1 HR |
| Display | High definition backlight LCD |
| Operation | Menu selectable, membrane keypad |
| Limit Setting | Upper/lower limits setting and alarming |
| Data Statistics | Average, ,aximum, minimum, S, R |
| Curved Surface | Auto correction |
| Memory | Maximum 400 items of test results stored automatically |
| Testing Capacity | 300 mm (vertical) , 220 mm (horizontal) |
| Power Supply | AC, 220 V/110 V, 50 to 60 Hz, 4 A (convertible) |
| Dimensions | 27.1654 x 11.0236 x 33.8583" (690 x 280 x 860 mm) |
| Weight | 86 kg (190 lbs) |
