Use this tester to measure the hardness of a variety of materials. The closed-loop technology delivers accurate results.
Use this tester to measure the hardness of a variety of materials. The closed-loop technology delivers accurate results.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.

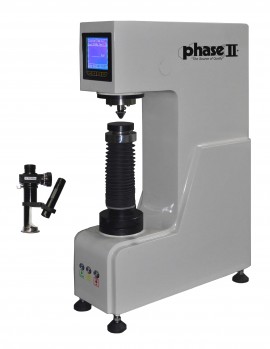

Utilizing innovative closed-loop technology, this Phase II 900-358 Digital Motorized Brinell Hardness Tester with Auto Z-Axis produces highly accurate Brinell hardness measurements. The test cycle, load application, holding and unloading processes are completely automatic to help reduce the chance of operator influence and improve reproducibility of the results.
Features
| Load | 29,400 N (3,000 kgF), 14,700 N (1,500 kgF), 9,800 N (1,000 kgF), 7,355 N (750 kgF), 4,900 N (500 kgF), 2,452 N (250 kgF), 1,839 N (187.5 kgF), 1,226 N (125 kgF), 980 N (100 kgF), 612.9 N (62.5 kgF) |
| Load Dwell Duration | 2 to 99 seconds |
| Indenter | Tungsten Carbide Ball: 0.098" (2.5 mm), 0.2" (5 mm), 0.4" (10 mm) |
| Measurement Range | 3.18 to 58 HBW |
| Microscope Magnification | 20x |
| Microscope Resolution | 0.005 mm |
| Maximum Measurable Height | 9.06" (230 mm) |
| Maximum Measurable Depth | 5.5" (140 mm) |
| Hardness Range Error | ≤125: ±3.0%, 125 < HBW ≤ 225: ±2.5%, >225: ±2.0% |
| Hardness Range Repeatability | ≤125: ≤3.0%, 125 < HBW < 225: ≤2.5%, >225: ≥2.0% |
| Power Supply | 110/220 V, 50/60 Hz, 4 A |
| Product Length | 20.87" (530 mm) |
| Product Width | 10.24" (260 mm) |
| Product Height | 29.53" (750 mm) |
| Product Weight | 242.5 lbs (110 kg) |
| Load | 29,400 N (3,000 kgF), 14,700 N (1,500 kgF), 9,800 N (1,000 kgF), 7,355 N (750 kgF), 4,900 N (500 kgF), 2,452 N (250 kgF), 1,839 N (187.5 kgF), 1,226 N (125 kgF), 980 N (100 kgF), 612.9 N (62.5 kgF) |
| Load Dwell Duration | 2 to 99 seconds |
| Indenter | Tungsten Carbide Ball: 0.098" (2.5 mm), 0.2" (5 mm), 0.4" (10 mm) |
| Measurement Range | 3.18 to 58 HBW |
| Microscope Magnification | 20x |
| Microscope Resolution | 0.005 mm |
| Maximum Measurable Height | 9.06" (230 mm) |
| Maximum Measurable Depth | 5.5" (140 mm) |
| Hardness Range Error | ≤125: ±3.0%, 125 < HBW ≤ 225: ±2.5%, >225: ±2.0% |
| Hardness Range Repeatability | ≤125: ≤3.0%, 125 < HBW < 225: ≤2.5%, >225: ≥2.0% |
| Power Supply | 110/220 V, 50/60 Hz, 4 A |
| Product Length | 20.87" (530 mm) |
| Product Width | 10.24" (260 mm) |
| Product Height | 29.53" (750 mm) |
| Product Weight | 242.5 lbs (110 kg) |
