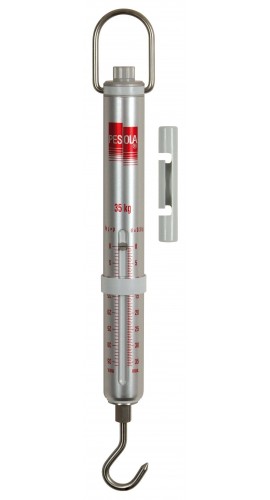

PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg

Model: 80035 | UPC: 7612348800353

PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg-

Downloads: datasheet

More PESOLA Products

Ask an Expert

PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg

Model: 80035 | UPC: 7612348800353

Featuring a precise and handy multifunctional long life metric spring balance for weighing and measuring traction forces. It has a durable anodized aluminum tube and long scale of high resolution, along with a swivelable, rotatable, and removable suspension bow guided in a ring. It features a capacity of 35 kg.

Featuring a precise and handy multifunctional long life metric spring balance for weighing and measuring traction forces. It has a durable anodized aluminum tube and long scale of high resolution, along with a swivelable, rotatable, and removable suspension bow guided in a ring. It features a capacity of 35 kg.

Sale Price $139.04 USD
Regular Price $158.00 USD
Availability 1 to 2 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PESOLA 80035 Macro-Line Metric Spring Scale

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PESOLA 80035 Macro-Line Metric Spring Scale

Recommended Accessories

PESOLA 8.004 Macro-Line Pressure Set-

PESOLA 8.004 Macro-Line Pressure Set

8.004

PESOLA 8.032 Multifunctional Cap for the PESOLA 8.004 Pressure Rod-

PESOLA 8.032 Multifunctional Cap for the PESOLA 8.004 Pressure Rod

8.032

PESOLA 8.075 Replacement Handle for the PESOLA Macro Line Scales-

PESOLA 8.075 Replacement Handle for the PESOLA Macro Line Scales

8.075

PESOLA 8.085 Replacement Handle Bow Ring for the PESOLA Macro Line Scales-

PESOLA 8.085 Replacement Handle Bow Ring for the PESOLA Macro Line Scales

8.085

PESOLA 8.128 Lower Suspension Hook for PESOLA Macro Line Scales-

PESOLA 8.128 Lower Suspension Hook for PESOLA Macro Line Scales

8.128

PESOLA 8.132 Replacement Drag Pointer for PESOLA Macro Line Scales-

PESOLA 8.132 Replacement Drag Pointer for PESOLA Macro Line Scales

8.132

PESOLA 80035 Offers

Drag pointer and convenient, removable handle are included. A multifunctional long life measuring instrument for weighing, measuring traction and pressure forces (optional) – two functions in one instrument. Always ready for use, needs no batteries. A time-tested original Swiss quality product.

Features

  • Handle – comfortable and removable
  • Bow (swivelable, rotatable and removable) guided in a ring
  • Screw for tare and adjusting the zero position (range of tare = 20%)
  • Integrated recoil absorption for tensile tests with drag pointer
  • Adjustment and suspension of spring totally innovative and without play, fatigue resistant spring
  • Marker on level of graduation for perfect reading
  • Precise graduation with high resolution
  • Abrasion-resistant, color anodized. Inverse figures for easy reading in different positions
  • Drag pointer supplied
  • Overload proof up to 130% of capacity
  • Hook swivelable, rotatable and replaceable by different accessories

Applications

  • Security in buildings: Door opening forces e.g. of panic or fire doors (emergency exits)
  • Agriculture: Fertilizer dosage, evaluation of harvesting time, control of yield
  • Machine Industry: Tensile measurements of any kind
  • Textile Industry: Tensile or rupture test of yarn, density of cloth
  • Household, Office: Weighing letters, parcels, baggage
  • Developing Countries: Baby scale
  • Automatic Dispensers: Measurement of powders and liquids
  • Biology, Ecology, and Pollution Control: Field work
  • Ice, Snow, and Glacier Research: Measuring ice and snow density
  • Paint Trade: Measuring paints and solvents
  • Sports: Adjusting and weighing equipment (e.g. mountain bike)
  • Sailing: Tension of rigging, weight of accessories

What's included with the PESOLA 80035

  • Macro-Line Metric Spring Scales
  • Transparent Hard Carrying Case
  • Handle
  • Drag Pointer
  • Manual

Exchange suspension M8 Macro-Line

datasheet for the PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg

Click on a category to view a selection of compatible accessories with the PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg.

PESOLA 8.004 Macro-Line Pressure Set 8.004
With this accessory all Macro-Line Scales can be easily transformed into a pressure measuring instrument within 20 seconds.



PESOLA 8.032 Multifunctional Cap for the PESOLA 8.004 Pressure Rod 8.032
The Multi-Functional Cap can be positioned with the concave side outwards, or the flat side with X imprint. The concave side is for use to measure pressure on round objects or on reentrant edges. The flat side is suitable to measure the pressure on flat objects or on projecting edges.



PESOLA 8.075 Replacement Handle for the PESOLA Macro Line Scales 8.075
This handle is part of the standard equipment of all PESOLA Macro-Line Scales. It is a plastic grip which easily attaches to the suspension bow of the scale allowing the weight to be lifted comfortably.



PESOLA 8.085 Replacement Handle Bow Ring for the PESOLA Macro Line Scales 8.085
This replacement plastic ring holds the metal handle bow and allows the it to rotate and swivel in the cover of the scale.



PESOLA 8.128 Lower Suspension Hook for PESOLA Macro Line Scales 8.128
Replacement part for the PESOLA Macro-Scales. The hook rotates in the M8 nut and also swiveles slightly.



PESOLA 8.132 Replacement Drag Pointer for PESOLA Macro Line Scales 8.132
Replacement part for the PESOLA Macro-Scales. The plastic ring easily clicks over the metal tube.



PESOLA 80035 Offers

Drag pointer and convenient, removable handle are included. A multifunctional long life measuring instrument for weighing, measuring traction and pressure forces (optional) – two functions in one instrument. Always ready for use, needs no batteries. A time-tested original Swiss quality product.

Features

  • Handle – comfortable and removable
  • Bow (swivelable, rotatable and removable) guided in a ring
  • Screw for tare and adjusting the zero position (range of tare = 20%)
  • Integrated recoil absorption for tensile tests with drag pointer
  • Adjustment and suspension of spring totally innovative and without play, fatigue resistant spring
  • Marker on level of graduation for perfect reading
  • Precise graduation with high resolution
  • Abrasion-resistant, color anodized. Inverse figures for easy reading in different positions
  • Drag pointer supplied
  • Overload proof up to 130% of capacity
  • Hook swivelable, rotatable and replaceable by different accessories

Applications

  • Security in buildings: Door opening forces e.g. of panic or fire doors (emergency exits)
  • Agriculture: Fertilizer dosage, evaluation of harvesting time, control of yield
  • Machine Industry: Tensile measurements of any kind
  • Textile Industry: Tensile or rupture test of yarn, density of cloth
  • Household, Office: Weighing letters, parcels, baggage
  • Developing Countries: Baby scale
  • Automatic Dispensers: Measurement of powders and liquids
  • Biology, Ecology, and Pollution Control: Field work
  • Ice, Snow, and Glacier Research: Measuring ice and snow density
  • Paint Trade: Measuring paints and solvents
  • Sports: Adjusting and weighing equipment (e.g. mountain bike)
  • Sailing: Tension of rigging, weight of accessories
Show More...

What's included with the PESOLA 80035

  • Macro-Line Metric Spring Scales
  • Transparent Hard Carrying Case
  • Handle
  • Drag Pointer
  • Manual

Exchange suspension M8 Macro-Line

datasheet for the PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg

Click on a category to view a selection of compatible accessories with the PESOLA 80035 Macro-Line Metric Spring Scale, 35 kg.

PESOLA 8.004 Macro-Line Pressure Set 8.004
With this accessory all Macro-Line Scales can be easily transformed into a pressure measuring instrument within 20 seconds.



PESOLA 8.032 Multifunctional Cap for the PESOLA 8.004 Pressure Rod 8.032
The Multi-Functional Cap can be positioned with the concave side outwards, or the flat side with X imprint. The concave side is for use to measure pressure on round objects or on reentrant edges. The flat side is suitable to measure the pressure on flat objects or on projecting edges.



PESOLA 8.075 Replacement Handle for the PESOLA Macro Line Scales 8.075
This handle is part of the standard equipment of all PESOLA Macro-Line Scales. It is a plastic grip which easily attaches to the suspension bow of the scale allowing the weight to be lifted comfortably.



PESOLA 8.085 Replacement Handle Bow Ring for the PESOLA Macro Line Scales 8.085
This replacement plastic ring holds the metal handle bow and allows the it to rotate and swivel in the cover of the scale.



PESOLA 8.128 Lower Suspension Hook for PESOLA Macro Line Scales 8.128
Replacement part for the PESOLA Macro-Scales. The hook rotates in the M8 nut and also swiveles slightly.



PESOLA 8.132 Replacement Drag Pointer for PESOLA Macro Line Scales 8.132
Replacement part for the PESOLA Macro-Scales. The plastic ring easily clicks over the metal tube.
