This Test Kit combines a power meter, multimode light source, and single-mode light source, designed to certify fiber optic links against multiple cabling standards for both single-mode and multimode networks. It can store up to 1000 fiber runs and supports USB transfer to a PC for report creation.
This Test Kit combines a power meter, multimode light source, and single-mode light source, designed to certify fiber optic links against multiple cabling standards for both single-mode and multimode networks. It can store up to 1000 fiber runs and supports USB transfer to a PC for report creation.

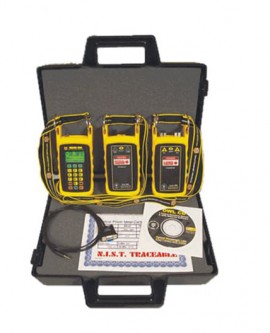

OWL KIT-FO4B-D2st-L2st Fiber OWL 4 Bolt / Dual and Laser MM/SM Test Kit includes a power meter, multimode light source, and a singlemode light source.
Features
| Specifications | OWL KIT-FO4B-D2st-L2st Fiber OWL 4 Bolt/Dual and Laser MM/SM Test Kit |
| Optical Power Meter | |
| Fiber OWL 4 BOLT Optical Power Meter | Dual OWL Fiber Optic Light Source |
| Detector Type | InGaAs |
| NIST Traceable Wavelengths | 850, 1300, 1310, 1550 nm |
| Additional Wavelengths | 980, 1490, 1625 nm |
| Optical Power Measurement Range | +5 to -170 dBm |
| Accuracy | ±0.15 dB |
| Resolution | 0.01 dB |
| Battery Life | Up to 100 hours (9 v) |
| Connector Type | Universal |
| Data Storage Points | Up to 1000 |
| Download Data Points Software | OWL Reporter |
| Power Units Displayed | dBm, dB, μW |
| Modes of Operation | Simple/Certification |
| Optical Fiber Length Measurement Range | Up to 25km |
| Optical Fiber Length Measurement Accuracy | ± 8.2' (2.5 m) |
| Battery Capacity Display | Yes |
| Backlight | Yes |
| NIST Traceable | Yes |
| Auto-shutdown | Yes |
| Serial Port Diagnostic | Yes |
| Operating Temperature | -10 to 131°F (14 to 131°F (-132 to 131°F (0 to 55°C))) |
| Storage Temperature | -86 to 158°F (-30 to 70 °C) |
| Width | 3.48 x 6.48 x 1.1" (8.84 x 16.46 x 2.79 cm) |
| Weight | 12 oz (373 g) |
| Battery Type | 9 V Alkaline |
| Battery Capacity Display | Yes |
| Operating Temperaure | 32 to 131°F (0 to 55°C) |
| Storage Temperature | 32 to 167°F (32 to 131°F (0 to 55°C)) |
| Dimensions | 2.75" x 4.94" x 1.28" |
| Weight | 5.43 oz (154 g) |
| Specifications | OWL KIT-FO4B-D2st-L2st Fiber OWL 4 Bolt/Dual and Laser MM/SM Test Kit |
| Optical Power Meter | |
| Fiber OWL 4 BOLT Optical Power Meter | Dual OWL Fiber Optic Light Source |
| Detector Type | InGaAs |
| NIST Traceable Wavelengths | 850, 1300, 1310, 1550 nm |
| Additional Wavelengths | 980, 1490, 1625 nm |
| Optical Power Measurement Range | +5 to -170 dBm |
| Accuracy | ±0.15 dB |
| Resolution | 0.01 dB |
| Battery Life | Up to 100 hours (9 v) |
| Connector Type | Universal |
| Data Storage Points | Up to 1000 |
| Download Data Points Software | OWL Reporter |
| Power Units Displayed | dBm, dB, μW |
| Modes of Operation | Simple/Certification |
| Optical Fiber Length Measurement Range | Up to 25km |
| Optical Fiber Length Measurement Accuracy | ± 8.2' (2.5 m) |
| Battery Capacity Display | Yes |
| Backlight | Yes |
| NIST Traceable | Yes |
| Auto-shutdown | Yes |
| Serial Port Diagnostic | Yes |
| Operating Temperature | -10 to 131°F (14 to 131°F (-132 to 131°F (0 to 55°C))) |
| Storage Temperature | -86 to 158°F (-30 to 70 °C) |
| Width | 3.48 x 6.48 x 1.1" (8.84 x 16.46 x 2.79 cm) |
| Weight | 12 oz (373 g) |
| Battery Type | 9 V Alkaline |
| Battery Capacity Display | Yes |
| Operating Temperaure | 32 to 131°F (0 to 55°C) |
| Storage Temperature | 32 to 167°F (32 to 131°F (0 to 55°C)) |
| Dimensions | 2.75" x 4.94" x 1.28" |
| Weight | 5.43 oz (154 g) |
