Image is for reference only, refer to product info for complete details.

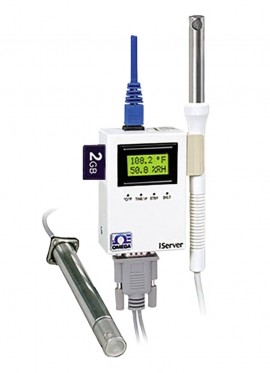

Made for networked environmental monitoring, this Ethernet monitor measures temperature and relative humidity through a 2" industrial probe. Readings are served over Ethernet to a web browser and shown on a built-in LCD, with logging to an SD card. Powered by an AC adapter with battery backup, it works great for process and environmental room monitoring.
Made for networked environmental monitoring, this Ethernet monitor measures temperature and relative humidity through a 2" industrial probe. Readings are served over Ethernet to a web browser and shown on a built-in LCD, with logging to an SD card. Powered by an AC adapter with battery backup, it works great for process and environmental room monitoring.
The OMEGA(R) iTHX-SD transmitter let's you monitor and record Temperature, Relative Humidity and Dew Point over an Ethernet network or the Internet with no special software except a Web Browser. The iTHX-SD serves Active Web Pages to display real time readings, display charts of temperature, humidity, and dew point or log data in standard data formats for use in a spreadsheet or data acquisition program such as Excel or Visual Basic.
The virtual chart viewed on the web page is a JAVA(TM) Applet that records a chart over the LAN or Internet in real time. With the iTHX-SD, there is no need to invest time and money learning a proprietary software program to log or chart the data.
The data is recorded on widely available SD (Secure Digital) flash cards. The format is a simple text file that is easily imported to spread sheets and other programs. It can be read on a PC or MAC with a USB card reader.
You can also download the data remotely over an Ethernet network or the Internet.
The iTHX-SD features two 1.5 Amp relays. With the easy Web-based setup page, the two relays can be programmed for an combination of temperature or humidity, and high or low set points. The relays can also be programmed to remain latched and require a manual reset if a limit is exceeded.
Chart scales are fully adjustable on the fly. For example, the chart can display one minute, one hour, one day, one week, one month or one year.
When a second sensor is added, users can select a chart that records channel 1, channel 2 or the difference of the two channels.
The iTHX-SD is simple to install and use, and features OMEGA's award-winning iServer technology that requires no special software except a Web Browser.
The iTHX-SD connects to an Ethernet Network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web Browser and can be password protected.
From within an Ethernet LAN or over the Internet, the user simply types its IP address or an easy to remember name such as "Cleanroom5" or "ServerRoom" in any Web Browser, and the iTHX-SD serves a Web Page with the current readings.
Features
Applications
| Probe | Industrial 51 mm (2 ") probe |
| Cable | 0.9 m (3') with DB9 connector |
| Weight | 0.86 lbs (389 g) |
| Probe | Industrial 51 mm (2 ") probe |
| Cable | 0.9 m (3') with DB9 connector |
| Weight | 0.86 lbs (389 g) |
