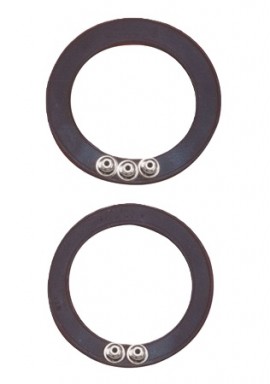

Image is for reference only, refer to product info for complete details.
This strip heater is configured for Ring Style, 240 V AC, 1800 W. It suits tank bottoms and dies.
This strip heater is configured for Ring Style, 240 V AC, 1800 W. It suits tank bottoms and dies.
Single-heat rings have two terminals for single wattage, ON-OFF switch or thermostat. Three-heat rings have three terminals which split the total rated wattage into two equal circuits. By using a three-heat switch 1/4, 1/2 or full wattage may be obtained.
Features
Applications
| Series | A Series |
| Type | strip heater |
| Configuration | Ring Style |
| Supply voltage | 240 V AC |
| Configuration | 1800 W |
| Configuration | 19 W/in2 |
| Configuration | 2 Heating Elements |
| Configuration | 2 Terminals |
| Configuration | Chrome Steel Sheath |
| Range | 1202°F (650°C) |
| Configuration | 10-31/32" (27.9 cm) OD |
| Configuration | Heavy Duty |
| Power | 120 or 240 V |
| Wattage | 125 to 1800 W |
| Sheath Material | Chrome Steel |
| Maximum Sheath Temperature | 1200°F (649°C) |
| Watt Density (per To Order table) | 9 to 19 W/in2 |
| Construction | Refractory-insulated construction |
| Terminals | Single-heat rings: two terminals (single wattage); three-heat rings: three terminals (split total wattage into two equal circuits, center terminal common) |
| Outside Diameter Range (A dim, To Order table) | 3 31/32 (10) to 10 31/32" (28 cm) |
| Approvals | U.L. Component Recognized; CSA Certified |
| Weight (per To Order table) | 0.7 to 1.8 lb (0.3 to 0.6 kg) |
