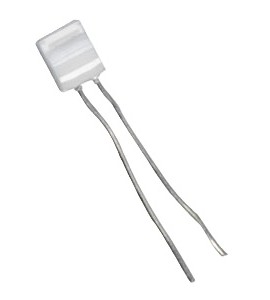

Designed for precise temperature sensing, this platinum thin-film RTD element measures -50 to 500°C (-58 to 932°F). It provides 100 ohm resistance with Class B accuracy per IEC 60751 through a 2-wire connection in a 2.3 x 2.1 x 0.9 mm body. Supplied as a pack of 5, it works great for OEM probe assembly and sensor manufacture.
Designed for precise temperature sensing, this platinum thin-film RTD element measures -50 to 500°C (-58 to 932°F). It provides 100 ohm resistance with Class B accuracy per IEC 60751 through a 2-wire connection in a 2.3 x 2.1 x 0.9 mm body. Supplied as a pack of 5, it works great for OEM probe assembly and sensor manufacture.
These elements can be used as is with controllers and instruments, or as part of a sensor assembly.
Features
Applications
| Temperature range | -58°F to 932°F (-50°C to 500°C) |
| Nominal resistance | 100 Ω at 0°C |
| Resistance tolerance | 100.00 ±0.12 Ω at 0°C |
| Dimensions | 0.091" (2.3 ±0.15 mm) x 0.083" (2.1 ±0.15 mm) x 0.035" (0.9 +0.3/-0.2 mm) (L x W x T) Leads: 0.010" dia. (ø0.25 ±0.02 mm) x 0.394" long (10 ±1 mm) |
| Temperature range | -58°F to 932°F (-50°C to 500°C) |
| Nominal resistance | 100 Ω at 0°C |
| Resistance tolerance | 100.00 ±0.12 Ω at 0°C |
| Dimensions | 0.091" (2.3 ±0.15 mm) x 0.083" (2.1 ±0.15 mm) x 0.035" (0.9 +0.3/-0.2 mm) (L x W x T) Leads: 0.010" dia. (ø0.25 ±0.02 mm) x 0.394" long (10 ±1 mm) |
