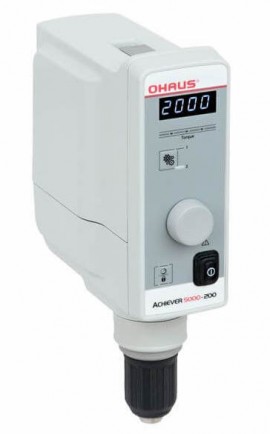

OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L

Model: 30586767

OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L-

Downloads: datasheet manual

More OHAUS Products

Ask an Expert

OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L

Model: 30586767

Designed for powerful, precise stirring, safety, and simplicity in all applications and ensures safe mixing performance with 100 L capacity.

Designed for powerful, precise stirring, safety, and simplicity in all applications and ensures safe mixing performance with 100 L capacity.

Sale Price $2100.90 USD
Regular Price $3043.00 USD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

OHAUS 30586778 Stirrer Shaft Folding Blade-

OHAUS 30586778 Stirrer Shaft Folding Blade

30586778

OHAUS 30586776 Stirrer Shaft Fixed Blade-

OHAUS 30586776 Stirrer Shaft Fixed Blade

30586776

OHAUS 30586777 Stirrer Shaft Floating Blade-

OHAUS 30586777 Stirrer Shaft Floating Blade

30586777

OHAUS 30586781 Stirrer Shaft Turbine-

OHAUS 30586781 Stirrer Shaft Turbine

30586781

OHAUS 30586782 Stirrer Shaft Turbo Propeller-

OHAUS 30586782 Stirrer Shaft Turbo Propeller

30586782

OHAUS 30586779 Stirrer Shaft Paddle-

OHAUS 30586779 Stirrer Shaft Paddle

30586779

OHAUS 30586767 Offers

The Achiever 5000 overhead stirrer is designed for safety.

Features

  • Powerful mixing and constant speed is assured with the brushless motor and torque compensation technology - delivering accurate, controlled stirring of viscous liquids with quiet operation
  • Simplify set up with the Keyless Chuck - no tools required. Change shafts quickly and easily with one handed operation. This unique design will save time and effort for everyone in the lab
  • Compact and easy to use. Simple knob control combined with the bright digital display allows for precise setting and monitoring. Customize for your application with over 12 accessories

Applications

  • Stirring
  • Dissolving
  • Dispersion
  • Emulsification and homogenization for the following the industries: food and beverage, cosmetics, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction. Used for pilot scale in manufacturing

OHAUS 30586767 Specifications

Speed Range 6 rpm – 400 rpm; 30 rpm – 2000 rpm
Capacity 100 L
Sample Viscosity (mPa s) Maximum 100,000
Torque (max) 200 Ncm
Chuck Range (Diameter) 1 to 13 mm
Shaft Pass-Through (Diameter) up to 8.5 mm
Control Digital
Dimensions (H x L x W) 12.4 x 9.3 x 3.5" (315 x 235 x 90 mm)
Display LED Display
Function Stirring
IP rating IP 54
Net Weight 10.1 lb (4.6 kg)
Power 115 / 230 VAC
Power Consumption 190 W
Safety Certification cNemkous
Speed Accuracy ±1 rpm
Working Environment 41 to 104°F, 80%RH, non-condensing (5 to 40°C, 80%RH, non-condensing)
Click here for complete specifications on the OHAUS 30586767

What's included with the OHAUS 30586767

  • OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L
datasheet for the OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L manual for the OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L

Click on a category to view a selection of compatible accessories with the OHAUS 30586767 Achiever 5000 Overhead Stirrer, 100 L.

OHAUS 30586778 Stirrer Shaft Folding Blade 30586778
Ideal for narrow neck vessels and comes with a dimension of 40 x 0.7 cm.



OHAUS 30586776 Stirrer Shaft Fixed Blade 30586776
Ideal for high speed, low viscosity mixing, and can create a vortex with a dimension 40 x 0.7 cm.



OHAUS 30586777 Stirrer Shaft Floating Blade 30586777
Ideal for narrow neck vessels and has a dimension of 40 x 0.7 cm.



OHAUS 30586775 Stirrer Shaft Anchor Blade 30586775
Suitable for medium or high viscosity materials and should be used at low speeds for high viscosity materials with a diameter of 40 x 0.7 cm.



OHAUS 30586781 Stirrer Shaft Turbine 30586781
Features a teeth break down agglomerations to help with dispersion and provides very high shear with a dimension of 40 x 0.7 cm.



OHAUS 30586782 Stirrer Shaft Turbo Propeller 30586782
Features a ring that protects the dip tubes or sensors in the vessel with a dimension of 40 x 0.7 cm.



OHAUS 30586780 Stirrer Shaft Propeller 30586780
Can be used at high speed with medium or high viscosity materials and has excellent mixing properties for homogenization and suspensions with a diameter of 40 x 0.7 cm.



OHAUS 30586779 Stirrer Shaft Paddle 30586779
Ideal for gentle mixing and use at low to medium speeds with a dimension of 51 x 0.7 cm and six holes.
