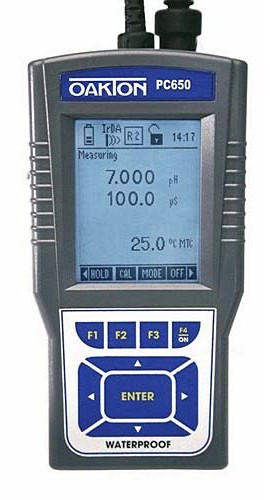

OAKTON PH/CON 650 Meter with Calibration

Model: PH/CON 650 | Order No: WD-35431-03

Combines the two most common electrochemistry measurements into one convenient meter. This model comes precalibrated.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Multifunction Meters category for similar products.

Or let's do a search and help you find what you need:

Recommended Accessories

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction

WD-35816-71

OAKTON PH/CON 650 Offers

Features

Durable waterproof and dustproof design with IP67 rating – Even with no probes attached
Push-button pH calibration at up to six points – Up to 15 buffer options with autobuffer recognition of USA, NIST, DIN, and PWB standards
Large backlit graphic display – Multiline display with electrode status indicator, calibration data, and more
User-settable "calibration due" alarm – Out-of-date or unperformed calibrations are now things of the past!
Built-in real-time clock – Time-and-date stamping meets Good Laboratory Practice (GLP) standards
Store up to 500 data sets – Infrared IrDA wireless technology makes PC downloading convenient and easy
Set point alarms – Audible warning when readings are outside set points limit
Research-grade accuracy – Resolution to 0.001 pH and accuracy to ±0.002 pH
Electrode status indicator – Calibration data provides electrode diagnostic tool
Password protection – Security for calibration and setup menus

Applications

Laboratory
Water Measurements

OAKTON PH/CON 650 Specifications

pH
Range	–2.000 to 20.000 pH
Resolution	0.1/0.01/0.001 pH
Accuracy	±0.002 pH
Calibration	Up to 6 buffer values (select from 4 sets): USA: 1.68, 4.01, 7.01, 10.01, 12.45; NIST: 1.68, 4.01, 6.86, 9.18, 12.45; DIN: 1.09, 2.06, 4.65, 6.79, 9.23, 12.75; or custom buffers
Ion
Range	0.001 to 19,900 ppm, molar, or mg/L
Resolution	2 or 3 Digits
Accuracy	±0.5% Full-Scale (Monovalent) 1% Full-Scale (Divalent)
Calibration	Up to 6 points
mV
Range	±2000 mV
Resolution	0.1 mV
Accuracy	±0.2 mV
Conductivity
Range	0 to 500.0 mS
Resolution	0.05% Full-Scale
Accuracy	1% Full-Scale
Calibration	Manual up to 5 points (1 per range) Automatic up to 4 points (84.0 µS/cm, 1413 µS/cm; 12.88 mS/cm, 111.8 mS/cm)

Click here for complete specifications on the OAKTON PH/CON 650

What's included with the OAKTON PH/CON 650

PH/CON 650 Meter with Calibration
Batteries

datasheet for the OAKTON PH/CON 650 Meter with Calibration manual for the OAKTON PH/CON 650 Meter with Calibration

Click on a category to view a selection of compatible accessories with the OAKTON PH/CON 650 Meter with Calibration.

Electrodes

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction WD-35816-71

This single-junction, epoxy-body, gel-filled pH electrode is rugged at an economical price making it ideal for field, clean water, and general-purpose applications.
