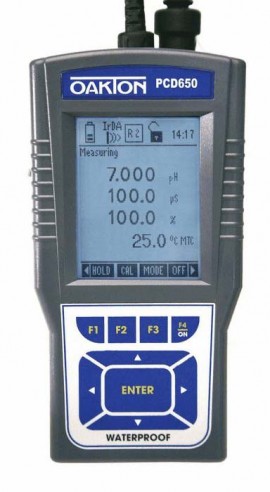

OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration

Model: PCD 650 | Order No: WD-35434-03

OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration-

Downloads: datasheet manual

More OAKTON Products

Ask an Expert

OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration

Model: PCD 650 | Order No: WD-35434-03

Able to measure pH, conductivity, dissolved oxygen and temperature simultaneously while having it display on one screen. This model comes precalibrated.

Able to measure pH, conductivity, dissolved oxygen and temperature simultaneously while having it display on one screen. This model comes precalibrated.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Multifunction Meters category for similar products.

Or let's do a search and help you find what you need:

Recommended Accessories

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction-

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction

WD-35816-71

OAKTON WD-35640-70 Replacement Electrolyte Powder, 58.5g-

OAKTON WD-35640-70 Replacement Electrolyte Powder, 58.5g

WD-35640-70

OAKTON WD-35640-50 Dissolved Oxygen Probe, 10 ft-

OAKTON WD-35640-50 Dissolved Oxygen Probe, 10 ft

WD-35640-50

OAKTON PCD 650 Offers

Features

  • Durable waterproof and dustproof design with IP67 rating – Even with no probes attached
  • Push-button calibration for all parameters – 6 points each for pH and conductivity; 3 points for DO
  • Large back-light graphic display – Multiline display with electrode status indicator, calibration data, and more
  • User-settable "calibration due" alarm – Out-of-date or unperformed calibrations are now things of the past!
  • Built-in real-time clock – Time-and-date stamping meets Good Laboratory Practice (GLP) standards
  • Store up to 500 data sets – Infrared IrDA wireless technology makes PC downloading convenient and easy
  • Set point alarms – Audible warning when readings are outside set points limit
  • Research-grade accuracy – Resolution to 0.001 pH and accuracy to ±0.002 pH
  • Electrode status indicator – Calibration data provides electrode diagnostic tool
  • Password protection – Security for calibration and setup menus

Applications

  • Laboratory
  • Water Measurements
  • Dirty and Wet Environments

OAKTON PCD 650 Specifications

pH
Range –2.000 to 20.000 pH
Resolution 0.1/0.01/0.001 pH
Accuracy ±0.002 pH
Calibration Up to 6 buffer values (select from 4 sets):
USA: 1.68, 4.01, 7.01, 10.01, 12.45;
NIST: 1.68, 4.01, 6.86, 9.18, 12.45;
DIN: 1.09, 2.06, 4.65, 6.79, 9.23, 12.75, or custom buffers
Conductivity
Range 0 to 500.0 mS
Resolution ±0.05 % full-scale
Accuracy ±1% full-scale
Calibration Manual up to 5 points (1 per range);
Automatic up to 4 points (84.0 µS/cm; 1413 µS/cm; 12.88 mS/cm, 111.8 mS/cm)
DO
Range 0.00 to 90.00 mg/L (ppm), 0.0 to 600.0%
Resolution 0.01 mg/L (ppm), 0.1%
Accuracy ±0.2 mg/L; ±2%
Calibration Two points; 100% and 0%
Temperature
Range –10.0 to 110.0°C (14.0 to 230.0°F), selectable
Resolution 0.1°C (0.1°F)
Accuracy ±0.5°C (±0.9°F)
Calibration Offset 0.1°C (0.1°F) increments
Click here for complete specifications on the OAKTON PCD 650

What's included with the OAKTON PCD 650

  • PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration
  • Batteries
datasheet for the OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration manual for the OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration

Click on a category to view a selection of compatible accessories with the OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration.

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction WD-35816-71
This single-junction, epoxy-body, gel-filled pH electrode is rugged at an economical price making it ideal for field, clean water, and general-purpose applications.



OAKTON WD-35640-70 Replacement Electrolyte Powder, 58.5g WD-35640-70
Mix up to 400 mL of your own electrolyte solution. Replacement electrolyte should be used whenever you replace the membrane or membrane cap on your DO meter to ensure accurate readings.



OAKTON WD-35640-50 Dissolved Oxygen Probe, 10 ft WD-35640-50
The galvanic sensing technology provides accurate readings without needing to warm-up. Membrane caps are replaceable to make maintenance easy. For use with OAKTON DO meters.



OAKTON PCD 650 Offers

Features

  • Durable waterproof and dustproof design with IP67 rating – Even with no probes attached
  • Push-button calibration for all parameters – 6 points each for pH and conductivity; 3 points for DO
  • Large back-light graphic display – Multiline display with electrode status indicator, calibration data, and more
  • User-settable "calibration due" alarm – Out-of-date or unperformed calibrations are now things of the past!
  • Built-in real-time clock – Time-and-date stamping meets Good Laboratory Practice (GLP) standards
  • Store up to 500 data sets – Infrared IrDA wireless technology makes PC downloading convenient and easy
  • Set point alarms – Audible warning when readings are outside set points limit
  • Research-grade accuracy – Resolution to 0.001 pH and accuracy to ±0.002 pH
  • Electrode status indicator – Calibration data provides electrode diagnostic tool
  • Password protection – Security for calibration and setup menus

Applications

  • Laboratory
  • Water Measurements
  • Dirty and Wet Environments
Show More...

OAKTON PCD 650 Specifications

pH
Range –2.000 to 20.000 pH
Resolution 0.1/0.01/0.001 pH
Accuracy ±0.002 pH
Calibration Up to 6 buffer values (select from 4 sets):
USA: 1.68, 4.01, 7.01, 10.01, 12.45;
NIST: 1.68, 4.01, 6.86, 9.18, 12.45;
DIN: 1.09, 2.06, 4.65, 6.79, 9.23, 12.75, or custom buffers
Conductivity
Range 0 to 500.0 mS
Resolution ±0.05 % full-scale
Accuracy ±1% full-scale
Calibration Manual up to 5 points (1 per range);
Automatic up to 4 points (84.0 µS/cm; 1413 µS/cm; 12.88 mS/cm, 111.8 mS/cm)
DO
Range 0.00 to 90.00 mg/L (ppm), 0.0 to 600.0%
Resolution 0.01 mg/L (ppm), 0.1%
Accuracy ±0.2 mg/L; ±2%
Calibration Two points; 100% and 0%
Temperature
Range –10.0 to 110.0°C (14.0 to 230.0°F), selectable
Resolution 0.1°C (0.1°F)
Accuracy ±0.5°C (±0.9°F)
Calibration Offset 0.1°C (0.1°F) increments
Click here for complete specifications on the OAKTON PCD 650

What's included with the OAKTON PCD 650

  • PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration
  • Batteries
datasheet for the OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration manual for the OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration

Click on a category to view a selection of compatible accessories with the OAKTON PCD 650 pH/Conductivity/Dissolved Oxygen Multiparameter with Calibration.

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction WD-35816-71
This single-junction, epoxy-body, gel-filled pH electrode is rugged at an economical price making it ideal for field, clean water, and general-purpose applications.



OAKTON WD-35640-70 Replacement Electrolyte Powder, 58.5g WD-35640-70
Mix up to 400 mL of your own electrolyte solution. Replacement electrolyte should be used whenever you replace the membrane or membrane cap on your DO meter to ensure accurate readings.



OAKTON WD-35640-50 Dissolved Oxygen Probe, 10 ft WD-35640-50
The galvanic sensing technology provides accurate readings without needing to warm-up. Membrane caps are replaceable to make maintenance easy. For use with OAKTON DO meters.
