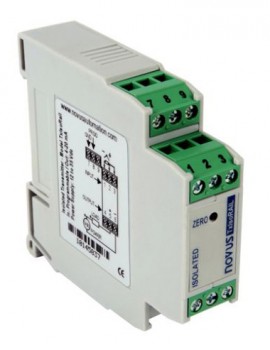

Fully programmable, this isolated temperature transmitter conditions and isolates signals from industrial sensors. Easily user configured for input type and working range using an interface cable connected to a PC USB port. Come with 0 to 10 Vdc output.
Fully programmable, this isolated temperature transmitter conditions and isolates signals from industrial sensors. Easily user configured for input type and working range using an interface cable connected to a PC USB port. Come with 0 to 10 Vdc output.
Protects the electrical instruments by eliminating ground loop effects and reduce substantially the undesirable interferences and instabilities in sensor measurements.
Features
Applications
| Power Supply | 18 to 30 Vdc |
| Accuracy | Pt100, 0 to 50 mV (tension) and 0 to 20 mA (current) ±0.20% of full scale. Thermocouples ± 0.25% of full scale ± 1°C |
| Temperature Effect | 0.003% of maximum SPAN/°C |
| Working Temperature | -40 to 185°F (-40 to 85°C) |
| Sensor Failure Protection | Programmable burnout upscale or downscale |
| Isolation | 1000 Vac between sensor input and 4-20 mA output loop |
| Selectable Mains Filter | 60 Hz or 50 Hz |
| Dimensions | 2.83 x 3.07 x 0.75" (72 x 78 x 19 mm) |
| Power Supply | 18 to 30 Vdc |
| Accuracy | Pt100, 0 to 50 mV (tension) and 0 to 20 mA (current) ±0.20% of full scale. Thermocouples ± 0.25% of full scale ± 1°C |
| Temperature Effect | 0.003% of maximum SPAN/°C |
| Working Temperature | -40 to 185°F (-40 to 85°C) |
| Sensor Failure Protection | Programmable burnout upscale or downscale |
| Isolation | 1000 Vac between sensor input and 4-20 mA output loop |
| Selectable Mains Filter | 60 Hz or 50 Hz |
| Dimensions | 2.83 x 3.07 x 0.75" (72 x 78 x 19 mm) |
