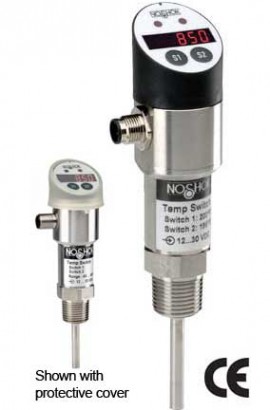

NOSHOK 850-2-8-50/400-2-120-6 Temperature Switch, 1 NO or NC, 4 to 20mA Output, 1/2" NPT, 350mm, 6 mm Diameter

Model: 850-2-8--4/248-2-350-6

Downloads: datasheet manual

NOSHOK 850-2-8-50/400-2-120-6 Temperature Switch, 1 NO or NC, 4 to 20mA Output, 1/2" NPT, 350mm, 6 mm Diameter

Model: 850-2-8--4/248-2-350-6

This electronic indicating temperature transmitter/switch offers a wide measuring range that covers the majority of temperature measuring and switching applications.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

Noshok 850-2-8--50/400-2-120-6 Offers

NOSHOK 850 Series Temperature Transmitter/Switch utilizes PT100 technology to provide continuous temperature monitoring, electronic temperature switching, and transmission of analog output of 4 mA to 20 mA while providing local digital indication

Features

One switching output (N.O. or N.C. switch-PNP) with 4 mA to 20 mA analog output
Two buttons on top allow simple adjustment of the temperature set points, reset points, switching functions and the measuring range of the optional analog output
Temperature range of -50 °F to 400 °F
1/2" NPT male standard connection
6 mm stem diameter, 12" Stem Length
A version with tapered stem is also available for rapid response times
Durable stainless steel housing and wetted parts
The housing and replaceable measuring insert are screwed together to allow the exchange of the measuring insert without opening the connection to the process

Applications

Mechanical engineering
Heating and cooling circuits
Air conditioning technology
Plant construction
Environmental technology

Noshok 850-2-8--50/400-2-120-6 Specifications

Temperature range	-50 °F to 400 °F Selectable display for °F or °C
Temperature sensor	Platinum resistor (PT100 2-Wire, Class B)
Wetted materials	316Ti Stainless steel
Housing materials	Stainless steel
Working pressure	6 mm stem diameter; 600 psi
Power supply*	12 Vdc to 30 Vdc
Power consumption	≤ 50 mA, without load
Signal output	4 mA to 20 mA Scaleable from 20-100% of range
Switch rating	100 mA per switch
Electrical connection	M12 X 1 (4-pin)
Accuracy	Class B +0.1°% of the temperature range
Display	7 Segment-LED, red 4-digit, height 0.3"
Environmental protection	NEMA 4; IP65 (IEC 529)
Weight	0.66 lb

Click here for complete specifications on the NOSHOK 850-2-8--4/248-2-350-6

What's included with the NOSHOK 850-2-8--4/248-2-350-6

NOSHOK 850-2-8-50/400-2-120-6 Temperature Switch, 1 NO or NC, 4 to 20mA Output, 1/2" NPT, 350mm, 6 mm Diameter

datasheet for the NOSHOK 850-2-8-50/400-2-120-6 Temperature Switch, 1 NO or NC, 4 to 20mA Output, 1/2" NPT, 350mm, 6 mm Diameter manual for the NOSHOK 850-2-8-50/400-2-120-6 Temperature Switch, 1 NO or NC, 4 to 20mA Output, 1/2" NPT, 350mm, 6 mm Diameter
