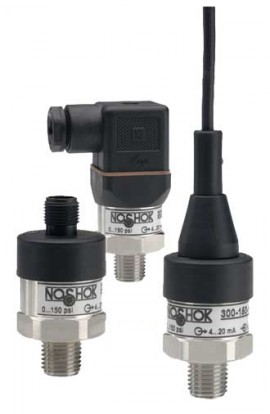

NOSHOK 300-100-1-1-2-8 Pressure Transducer, 100 psig, 4 to 20 mA Output, 2-wire, 1/4" NPT Male, Hirschmann

Model: 300-100-1-1-2-8

Downloads: datasheet manual

NOSHOK 300-100-1-1-2-8 Pressure Transducer, 100 psig, 4 to 20 mA Output, 2-wire, 1/4" NPT Male, Hirschmann

Model: 300-100-1-1-2-8

This pressure transducer has a pressure rating of 0 psig to 100 psig, ± 0.5 % full scale (BFSL) accuracy and 1/4" NPT Hirschmann connections.

Sale Price	$245.47 USD
Regular Price	$409.12 USD
Availability	3 to 4 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your NOSHOK 300-100-1-1-2-8 Pressure Transducer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Traceable Calibration Certificate for your NOSHOK 300-100-1-1-2-8 Pressure Transducer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Noshok 300-100-1-1-2-8 Offers

NOSHOK 300 Series Compact OEM Transducers with ranges from 0 psig to 15 through 0 psig to 10,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia.

Features

Pressure range of 0 psig to 100 psig
4 mA to 20 mA, 2-wire output signal
1/4" NPT male Hirschmann connections
316 and 13-8PH stainless steel wetted parts
RoHS compliant
CE compliant to suppress RFI, EMI and ESD

Applications

HVAC
Injection molding machines
Hydraulics & pneumatics
Railroad equipment
Stamping & forming presses

NOSHOK 300-100-1-1-2-8 Specifications

Pressure Ranges	0 psig to 15 psig through 0 psig to 10,000 psig Absolute from 0 psia to 15 psia through 0 psia to 300 psia
Stability	+/-0.2% full scale per year, non-accumulating
Response time	<4 ms (between 10% and 90% full scale)
Pressure cycle limit	150 Hz
Durability	> 100,000,000 full scale cycles
Proof pressure	2 times full scale
Burst pressure	6 times full scale
Connection	316 stainless steel
Housing material	316 stainless steel
Environmental rating	IP65 to IP67 depending on electrical connection
Electromagnetic rating	CE compliant to EMC norm EN 61326:1997/A1:1998, RFI, EMI and ESD protection
Shock	500 g's according to IEC 60068-2-27
Vibration	10 g's according to IEC 60068-2-6
Weight	Approximately 2.8 oz

Click here for complete specifications on the NOSHOK 300-100-1-1-2-8

What's included with the NOSHOK 300-100-1-1-2-8

NOSHOK 300-100-1-1-2-8 Pressure Transducer, 100 psig, 4 to 20 mA Output, 2-wire, 1/4" NPT Male, Hirschmann

datasheet for the NOSHOK 300-100-1-1-2-8 Pressure Transducer, 100 psig, 4 to 20 mA Output, 2-wire, 1/4" NPT Male, Hirschmann manual for the NOSHOK 300-100-1-1-2-8 Pressure Transducer, 100 psig, 4 to 20 mA Output, 2-wire, 1/4" NPT Male, Hirschmann
