Work with user-configured auto-tests for tasks with this copper and fiber AutoTester that validates copper and fiber Ethernet connections in less than 10 seconds. In addition, this AutoTester makes it easier to find and solve connectivity problems by allowing network technicians to perform pre-set tests for tasks.
Work with user-configured auto-tests for tasks with this copper and fiber AutoTester that validates copper and fiber Ethernet connections in less than 10 seconds. In addition, this AutoTester makes it easier to find and solve connectivity problems by allowing network technicians to perform pre-set tests for tasks.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

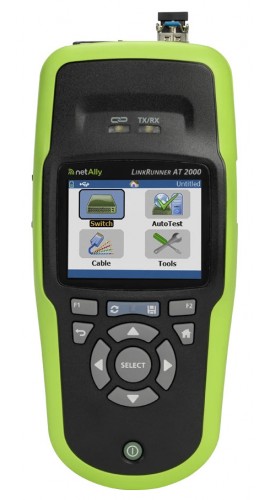

LinkRunner AT Network Auto-Tester is the fastest way to solve network connectivity problems. This rugged, handheld network tester takes the guesswork out of troubleshooting with its complete one-button AutoTest. AutoTest performs your required set of connectivity tests in 10 seconds, enabling you to accurately and quickly identify and solve network problems.
Key features include verifying signal and link integrity at 10/100/1G over copper or fiber, unmatched TruePower™PoE testing and loading, 802.1x authentication, cable wiremapping, IPv4/IPv6 readiness, streamlined UI and color display, full documentation of test results with storage for 50 reports, location and identification of cabling runs, and nearest switch information.
| Environmental | |
| Operating Temperature and Relative Humidity | 32 to 113ºF (0 to 45ºC) Note: Battery will not charge if internal temperature is above 113ºF (45ºC) |
| Operating Relative Humidity (% RH without condensation) |
90% (50 to 95ºF / 10 to 35ºC) 75% (95 to 113ºF / 35 to 45ºC) |
| Storage Temperature | -4 to 140ºF (-20 to 60ºC) |
| Shock and Vibration | Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop |
| Safety | EN 61010-1 2nd edition |
| Safety (LR-AT 2000 only) | EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only) |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | FCC Part 15 Class A, EN 61326-1 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association |
| General | |
| Media Access; Copper | RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at); 100BASE FX and 1000 |
| Media Access; Fiber | SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only) |
| Cable Tests | Pair lengths, opens, shorts, splits, crossed, straight through and cable ID |
| Tone Generator | IntelliTone digital tone: [500 KHz]; Analog tones: [400 Hz, 1 KHz] |
| Dimensions | 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm) |
| Weight | 18 oz (0.5 kg) |
| Battery | Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs) |
| Battery Life | Typical operating life is 6 hours; Typical charge time is 3 hours |
| External AC Adapter/Charger | AC input 90 to 264V AC48 to 62 Hz input power DC output 15V DC at 1.2 amps |
| Display | 2.8 in color LCD (320 x 240 pixels) |
| Keypad | 12-key elastomeric |
| LEDs | 2 LEDs (Link and Receive/Transmit indicators) |
| Host Interface | USB 5-pin mini-B |
| LinkRunner Manager Software | |
| Supported Operating Systems | Windows® Vista, Windows® XP, Windows® 7 |
| Processor | 400 MHz Pentium processor or equivalent (minimum); 1 GHz Pentium processor or equivalent (recommended) |
| RAM | 96 MB (minimum); 256 MB (recommended) |
| Hard Disk | Up to 500 MB of available space may be required |
| Display | 1024 x 768 high color, 32-bit (recommended) |
Gold Support for your LinkRunner AT Network Auto-Testerallows you to make the most of yourpurchase while ensuring a higher return on your investment. You will minimize your downtime, receive faster trouble resolution and have total access to all support resources.
What do you get with Gold Support for your LinkRunner AT Network Auto-Tester?
Repairs and loaner equipment - If your LinkRunner AT should fail, we'll deliver a loaner unit via next-day delivery to keep you up and running. We'll repair your LinkRunner AT and replace defective or faulty accessories at no charge, with first on bench" priority, and return it to you - all shipping paid by Fluke Networks.
Access to live 24 x 7 technical support - Extend the expertise of your staff. Gold Support includes direct, immediate telephone access to our world-class Technical Assistance Center (TAC), direct access only available to Gold Members. Our centers in Seattle, WA and Eindhoven, NL employ a full staff of highly trained technical experts that are on call, including weekends and through the night when most network changes are implemented, to answer complex troubleshooting questions helping you get the most out of your LinkRunner and understand the results you are seeing.
Accessory Replacement - Some accessories are essential to your LinkRunner AT. The normal warranty on accessories is 90 days, but parts and accessories that shipped with your tester will be replaced free of charge with Gold Support once qualified as defective by our technical assistance center.
Software upgrades - Your LinkRunner AT will never be out of date. You'll receive all software upgrades free.
Unlimited access to our Knowledge Base -You'll have an open door to valuable proprietary information we've gathered from helping customers over the years. It also includes helpful technical articles written by our experts.
Member Only promotions -Your membership qualifies you for Members Only promotions and programs. This includes product discounts, access to reconditioned equipment at special prices and other incredible values.
Ensure that you are getting the most out of your LinkRunner AT with Gold Support Services.
